Fuel Pump Control Unit

Control modules in rear part of vehicle

Fuel pump control module -J538-

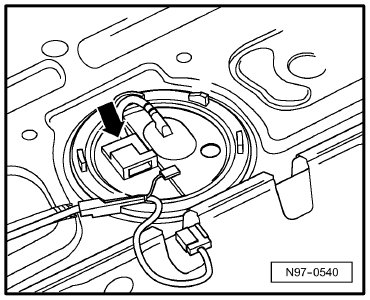

Component Location:


Below rear seat, right, on fuel delivery unit -Arrow-

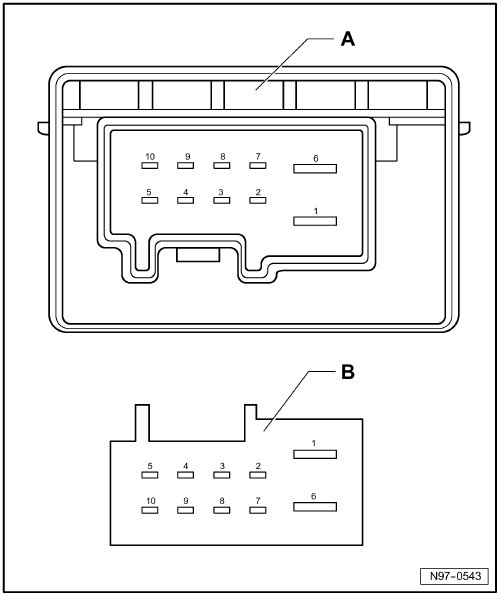

Pin Arrangements:







A - Fuel pump control module -J538-
Connector:

B - 10-pin connector -T10n- on wiring harness
