System Specifications

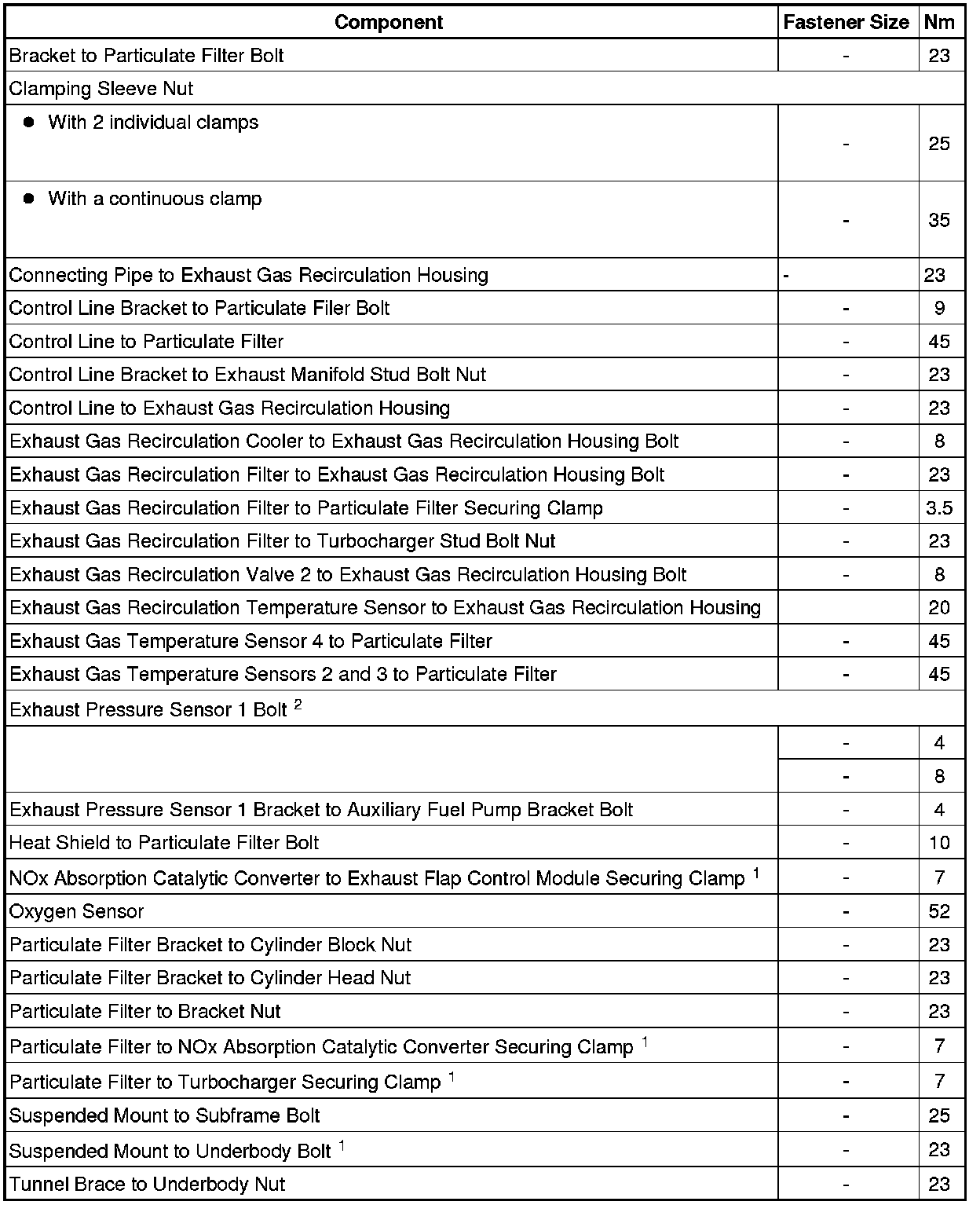

Fastener Tightening Specifications






• 1 Always replace

• 2 For bolt clarification, refer to items - 3 and 4 - in => [ Particulate Filter with NOx Reduction Catalytic Converter Overview ] Particulate Filter With NOx Reduction Catalytic Converter Overview.
