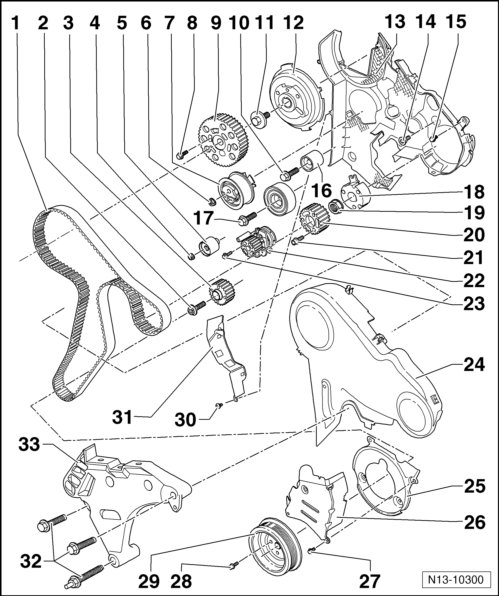

Timing Cover
Toothed Belt Guard Bolts
No. 14
20 Nm
No. 15
10 Nm
Always replace bolts
No. 27
10 Nm
Always replace bolts
No. 30
5 Nm
