Battery Control Module: Locations

Control modules in front part of vehicle

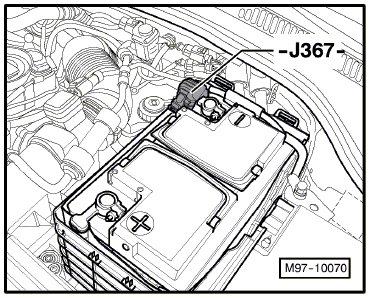

Battery monitoring control module -J367-









Component Location:


On the ground cable battery terminal clamp

Note::
• Only for vehicles with Start/Stop system.
