Driver Door Control Module -J386-






Comfort System - Connector Views

Driver door control module -J386-

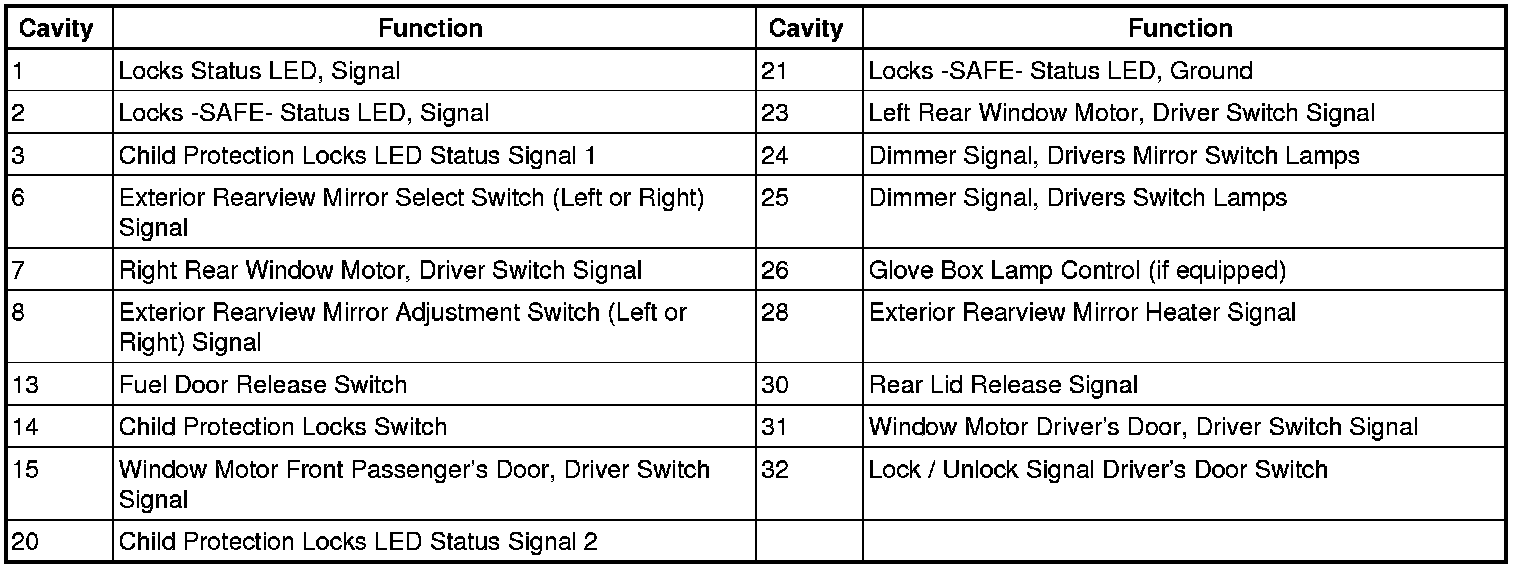

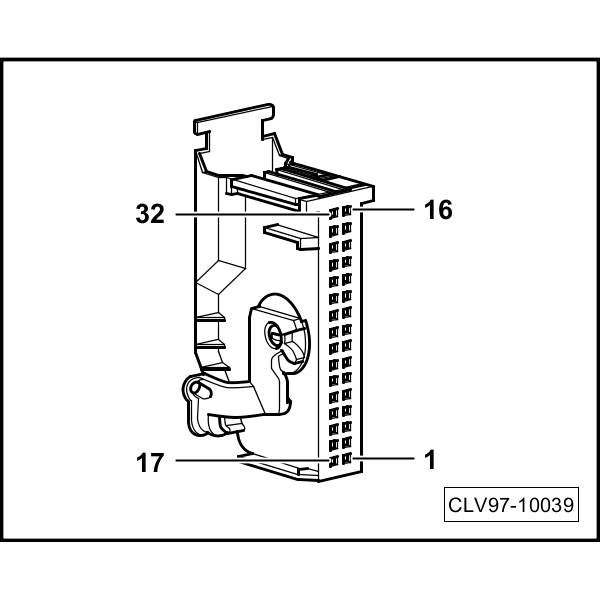

Connector A












Connector B












Connector C
