Side Window with Window Regulator, Installing

Side Window with Window Regulator, Installing

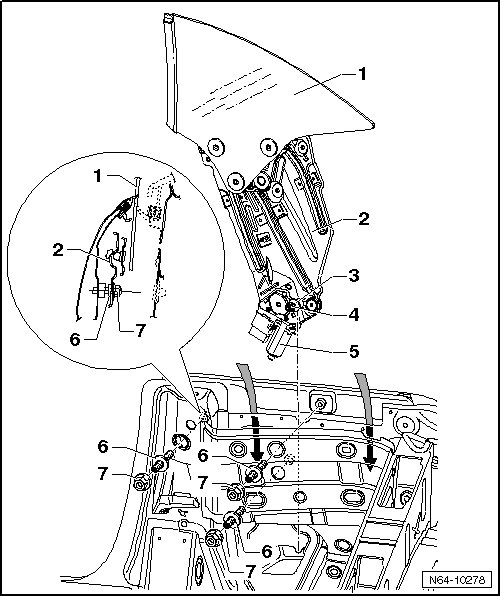

- Place side window - 1 - with window regulator - 2 - from above - arrows - into window recess.

- Connect window regulator motor connector - 5 -.

- Place window regulator on threaded pins - 6 -.

- Install nuts - 7 - on threaded pins - 6 -. Tightening specification: 10 Nm.

- Install lock nut - 4 - on threaded pins - 3 - on window regulator. Tightening specification: 10 Nm.

- Check adjustment of side window, adjust side window if necessary. Refer to => [ Side Window Adjustment Dimensions ] Side Window Adjustment Dimensions.

- Perform function test.

Install in reverse order of removal.
