Steering Column Electronic Systems Control Module -J527-: 804016

Control modules in front part of vehicle

Steering Column Electronic Systems Control Module -J527-









Component Location:


Below steering column, near steering column switch -Arrow-

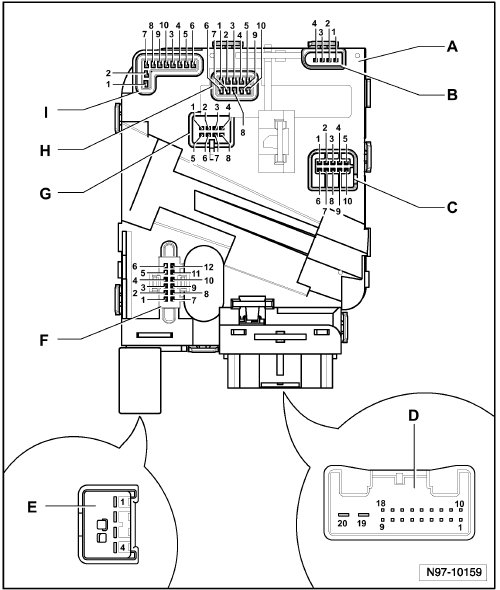

Pin Arrangements:







A - Steering Column Electronic Systems Control Module

B - Connector for Airbag:





C - Connector Turn Signal and Cruise Control System:





D - 20-pin connector -T20d- on
the wiring harness





E - 4-pin connector -T4k-
on wiring harness:





F - Connector Ignition/Starter Switch and Ignition Switch
Key Lock:





G - Connector Wiper, Interval potentiometer and Multi-Function
Indicator (MFI):





H - Connector Steering Angle Sensor:





I - Charging Spiral Spring:
