LR Door Control Module -J388-

Control modules in rear part of vehicle

Left Rear Door Control Module -J388-

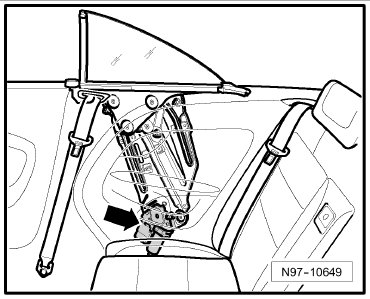

Component Location:


In left side panel -Arrow-

Note:
• Illustration depicts right side. The left side is similar.

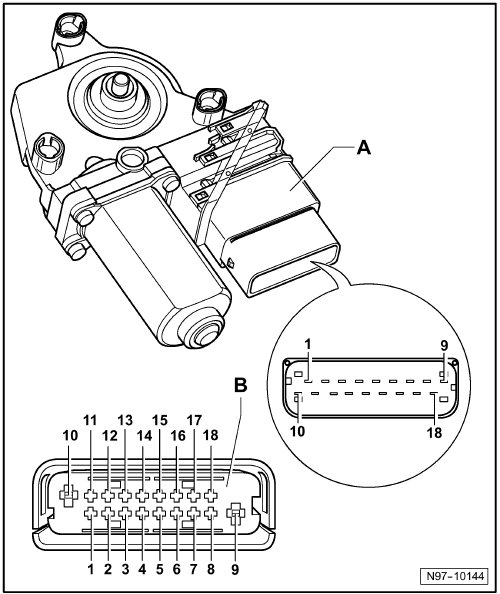

Pin Arrangements:







A - Left Rear Door Control Module -J388-
Connector:

B - 18-pin connector -T18c-
