Convertible Top Control Module







Convertible Top Control Module

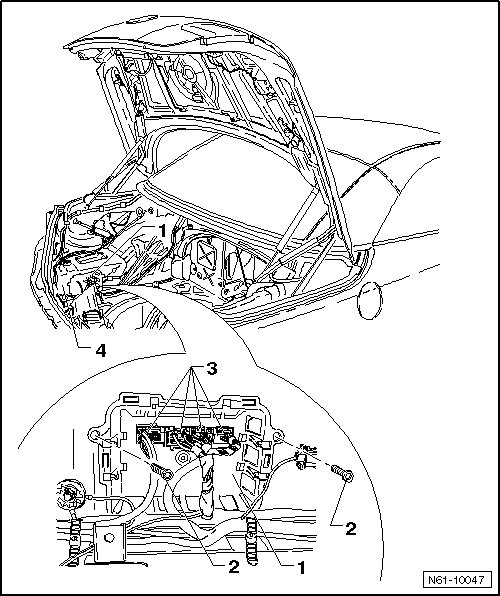

- Remove luggage compartment side trim.

- Disconnect the connectors - 3 -.

- Remove the bolts - 2 -.

- Remove control module - 1 - from longitudinal member - 4 -.

Tighten screws - 2 -: 3 Nm.
