Front A/C Display Control Head (E87)/(J255)

Front A/C Display Control Head (E87)/(J255)

• Removing and installing is identical for both control components.

• The Climatronic Control Module (J255) and the Front A/C Display Control Head (E87) are one component that cannot be disassembled.

Removal

- Remove the center trim from the instrument panel.

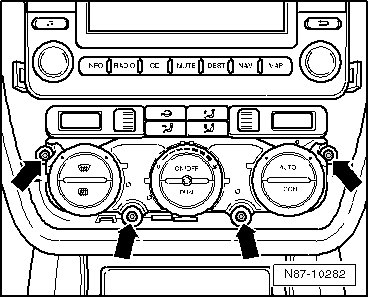

- Remove the screws - arrows - and the Front A/C display control head / Climatronic control module - 1 - from the center console.

- Disconnect the connectors from the Climatronic control module.

Installation

Install in reverse order of removal.
