Special Tools

Special tools and workshop equipment required

• Bearing Driver - Multiple Use VW244B
• Transmission Support VW353
• Press Plate VW401
• Press Plate VW402
• Press Piece - Rod VW407
• Press Piece - 37mm VW416B

Special tools and workshop equipment required

• Guide Pin VW436A
• Press Piece - Guide Pin VW439
• Slide Hammer Set VW771
• Crankshaft Holding Fixture VW801
• Guide Pins 10-15
• Press Piece - Pivot Mount Bushing 3124

Special tools and workshop equipment required

• Bearing Installer - Crankshaft Pilot Bearing 3264
• Subframe Support Tool 3290
• Torque Wrench 1331 5-50Nm VAG1331
• Bushing Driver - Selector Shaft T10168
• Locking Sleeve Drift T10169 or Locking Sleeve Drift T10362. Refer to Figure
• Breather Tube Tool T10203

Special tools and workshop equipment required

• Holding Plate VW309A
• or Holding Plate VW309A
• Holding Fixture VW313
• Transmission Support VW353
• Press Piece - Multiple Use VW455 or Press Piece - Front Wishbone 3160
• Slide Hammer Set VW771
• -1- Puller - Kukko Internal - 12-16mm Kukko 21/01
• -3- Puller - Kukko Quick Action Separating Tool - 5-60mm Kukko 17/0
• -4- Puller - Kukko Counterstay Kukko 22/1

Special tools and workshop equipment required

• Bracket - Multiple Use 30-211A
• Seal Installer - Drive Flange T10143 or Seal Installer - Output Shaft Oil Seal T10180
• Locking Sleeve Drift T10169
• or Locking Sleeve Drift T10362. Refer to Figure
• Seal Installer - Drive Axle T40008
• Torque Wrench 1331 5-50Nm VAG1331
• Hot Air Blower VAG1416

Special tools and workshop equipment required

• Golf convertible Engine Support Bridge - Engine Support Feet 10-222A/8
  Fig 7: Identifying Special Tools And Workshop Equipment

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

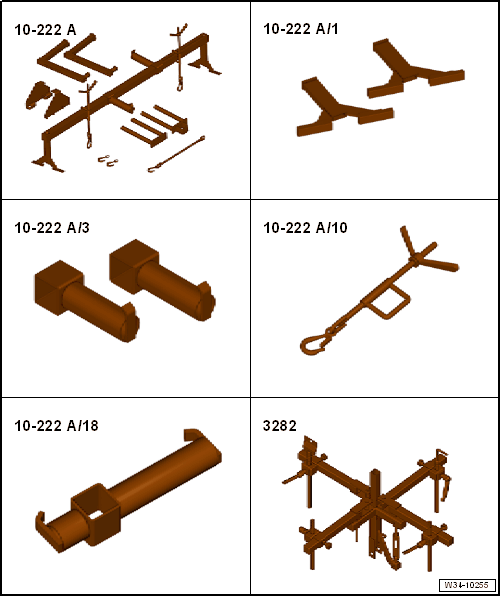

• Scirocco, CC and Passat Engine Support Bridge - Engine Bracket 10-222A/1
• Scirocco, CC and Passat Engine Support - Bracket w/Spindle and hook 10-222A/10
• Engine Support Bridge - Engine Support 310-222A/3
• Engine Support Bridge 10-222A
• Engine Support Bridge - Engine Support 1810-222A/18
• Transmission Support 3282
  Fig 8: Identifying Special Tools And Workshop Equipment

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

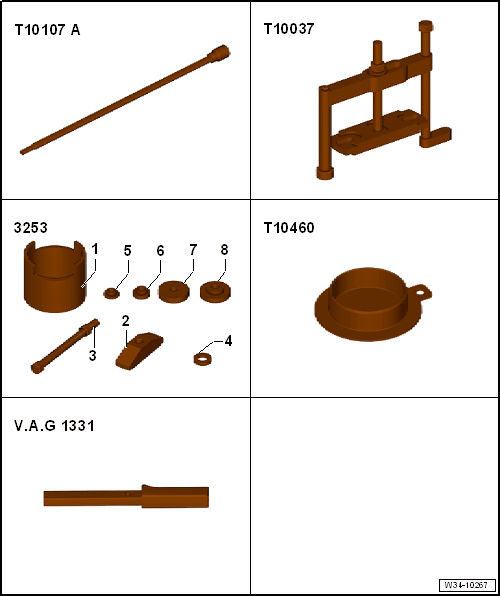

• Socket And Extended Bit T10107
• or Socket And Extended Bit T10107A
• Puller - Flanged Shaft T10037
• Rear Wheel Bearing Kit - Piece 53253/5
• Cover Cap T10460
• Torque Wrench 1331 5-50Nm VAG1331
• Drip Tray VAG1306
• or Shop Crane - Drip Tray VAS6208

Special tools and workshop equipment required

• Transmission Support - Mounting Plate 333282/33
• Transmission Support Elements (determine when mounting the Adjustment Plate on the Transmission Support)
• Transmission Support Jig 3336 to transport the transmission.
• Torque Wrench 1331 5-50Nm VAG1331
• Torque Wrench 1332 40-200Nm VAG1332
• Engine and Gearbox Jack VAS6931

Special tools and workshop equipment required

• Golf convertible Engine Support Bridge - Engine Support Feet 10-222A/8
  Fig 12: Identifying Special Tools And Workshop Equipment

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Scirocco, CC and Passat Engine Support Bridge - Engine Bracket 10-222A/1
• Scirocco, CC and Passat Engine Support - Bracket w/Spindle and hook 10-222A/10
• Engine Support Bridge - Engine Support 310-222A/3
• Engine Support Bridge 10-222A
• Engine Support Bridge - Engine Support 1810-222A/18
• Transmission Support 3282

Engine Support Bridge - Gearbox Bracket T10346

or Engine Support Device - Gearbox Bracket T10346/1

Engine Support Device 3300A

Slide Hammer Set - Adapter 40 VW771/40

Hose Clamps - Up To 25 mm 3094

Grease for Clutch Disc Shaft Splines G 000 100

For the correct grease.

M6 x 20 collar bolt

M6 x 80 collar bolt

M10 x 20 hex collar bolt

Special tools and workshop equipment required

• Engine Support Bridge 10-222A
• Engine Support Bridge - Gearbox Adapter 10-222A/29
• Engine Support Bridge - Engine Support 1810-222A/18
• If necessary Engine/Gearbox Support Shackle 10-222A/12
• Transmission Support - Pins 293282/29
• Transmission Support 3282

Special tools and workshop equipment required

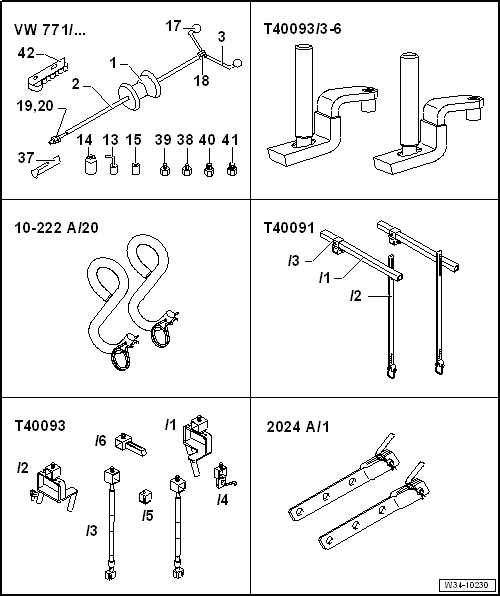

• Slide Hammer Set - Adapter 40 VW771/40
• Engine Support Brackets T40093/3-6 (quantity 2)
• Engine Support - Bracket w/Spindle and hook 10-222A/20
• Engine Support - Basic Set Square Pipe T40091/1 (quantity 2)
• Engine Support - Basic Set Movable Joint T40091/3 (quantity 2)
• Engine Support - Supplement Kit Spindle T40093/3 (quantity 2) from the Engine Support - Supplement Kit T40093A
• Engine Sling - Engine Bracket2024A/1 from Engine Sling2024A
• Grease for Clutch Disc Shaft Splines G 000 100
• For the correct grease.

Special tools and workshop equipment required

• Window Release Tool T10236
• Press Piece - Multiple Use VW412
• Over-Center Spring Assembly Tool T10178
• Engine Support Bridge - Engine Support 2510-222A/25
• 2 = Counter-Support for example, from Kukko model line 16
• Wedge T10357

Special tools and workshop equipment required

• Connecting Pin T10027A
  Fig 16: Identifying Connecting Pin T10027A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Press Piece - Block T10083
  Fig 17: Identifying Thrust Block

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Gearbox Support T10108
  Fig 18: Identifying Gearbox Support

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Holding Fixture - Gearbox Adapter T10235
  Fig 19: Identifying Gearbox Adapter

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Puller - Crankshaft/Power Steering Seal T20143/1
  Fig 20: Identifying Crankshaft/Power Steering Seal Puller

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Wedge Set T10383
  Fig 21: Identifying Wedge Set

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support T50015
  Fig 22: Identifying Engine Support

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clip Pliers VAG1275A
  Fig 23: Identifying Hose Clip Pliers

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench 1410 VAG1410
  Fig 24: Identifying Torque Wrench 1410 VAG1410

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane VAS6100
  Fig 25: Identifying Shop Crane - Load Cap

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Drip Tray VAG1306
  Fig 26: Identifying Drip Tray

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Holding Plate VW309A
  Fig 27: Identifying Holding Plate

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Holding Fixture VW313
  Fig 28: Identifying Holding Fixture

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Transmission Support VW353
  Fig 29: Identifying Transmission Support

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Press Piece - Shift Rod/Alternator VW423
  Fig 30: Identifying Sleeve

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• -1- Puller - Kukko Internal - 14-19mm Kukko 21/2
  Fig 31: Puller - Kukko Internal - 46-56mm Kukko 21/7

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pry Lever 80-200
  Fig 32: Identifying Pry Lever

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Sealing Grease.
• or Holding Plate VW309A
• For oil filler plug with multi-point fitting Triple Square Socket Driver 3357.
  Fig 33: Identifying Triple Square Socket Driver

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• or Socket And Extended Bit T10107A
• Torque Wrench 1331 5-50Nm VAG1331
• -1- Puller - Kukko Internal - 20-30mm Kukko 21/4
• -4- Puller - Kukko Counterstay Kukko 22/2
• Thread adaptor from Puller - Kukko Counterstay Kukko 22/1
• Backrest Panel Tool 3370
  Fig 34: Identifying Backrest Panel Tool

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• or Shop Crane - Drip Tray VAS6208
• Sealant
