RNS 510 Navigation Radio Software Update For Various Functionality Concerns (GROUP 91, NO. 12-06)

WARNING: This page is about the CC Lux, 2.0L Eng VIN N, which is a different variant/trim than selected.

Publication date: 2012-03-12
Reference number: GROUP 91, NO. 12-06
Supersedes refnos: 2027965

RNS 510 NAVIGATION RADIO SOFTWARE UPDATE FOR VARIOUS FUNCTIONALITY CONCERNS

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 91, NO. 12-06 (2027965), Date of Issue: March 12, 2012

VOLKSWAGEN:	Eos, Passat, Tiguan, CC 2012; Golf (Canada Only) 2012
GROUP:	91 - Radio, Telephone, Board Computer, Multi-Function Indicator (MFI)

Service

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
Eos, Passat, Tiguan, CC	2012	All	All	All	All
Golf (Canada Only)	2012	All	All	All	All

Condition

91 12 06 March 12, 2012 2027965

RNS 510 Navigation Radio Software Update for Various Functionality Concerns

RNS 510 Navigation Radio system may experience some or all of the following concerns:

Tip:

For faster operation of the RNS 510, deactivate the touch tone sound. This setting can be found by pressing the "SETUP" button and then selecting Display > Touch Screen Tone.

No audio when listening to satellite radio
No traffic service available in Utah
Volume fluctuates after phone call is made through Bluetooth®
SiriusXM™ TravelLink™ sporadically not available

Tip:

SiriusXM™ TravelLink™ is not currently offered in Canada at time of publishing.

Technical Background

Software concern with SW 3680.

Production Solution

Gradual introduction of software 3690.

Service

Connect Midtronics InCharge 940 (INC 940) tester/charger to vehicle's battery.
Verify that the touch screen navigation unit has not been updated.

Verify RNS 510 Software Level

Switch RNS 510 unit ON.
Press and hold the Setup key for 10 seconds.
Press Version Info.

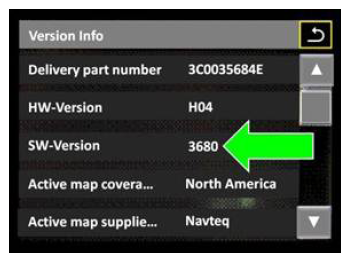

Verify software level is 3680.

Tip

If you are unable to retrieve version information, it is likely you have an older RNS510 that is not compatible with this software level. Please connect a scan tool to determine software level.

NOTE: If software level is found to be at any other level than 3680, this Technical Bulletin DOES NOT apply. Please see technical bulletin 2026563 "RNS 510 Navigation Radio Overview" for more information.

Software Update Procedure

Tip:

During the update programming process, the screen will go blank several times, this is considered normal.

If you receive an error due to "Amp clamp State", remove the key. Kessy equipped vehicles will need to have the key(s) moved away from the vehicle.

The key must be removed from the ignition with no disc in the radio.

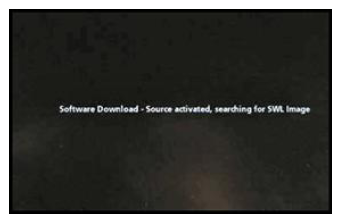

Switch RNS 510 ON.
Insert programming CD Part No.RNS510FLSH3690 into the radio.

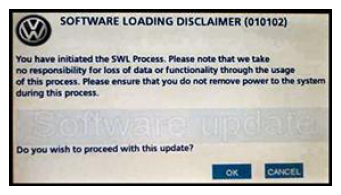

This screen will display showing that the disc has loaded properly.

Tip:

If a CD error is displayed, and remains more than 5 seconds, remove the CD and reinstall.

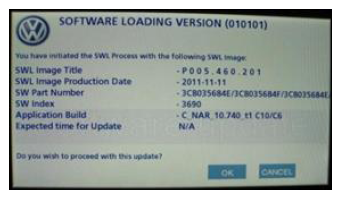

Touch "OK" to begin the update.
Touch "OK" to accept.
Tip:

Information stored on hard drive and the presets will not be lost as part of this update.

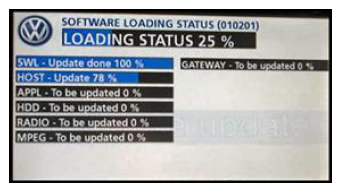

This screen will be shown while the update is taking place.

NOTE: DO NOT cancel update until complete.
DO NOT Start engine.

Disregard timer which appears on lower right side of navigation screen.

Tip:

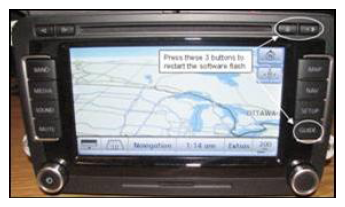

To restart the software flash for extended delays (+10 minutes), press Eject+Star+Guide buttons at the same time.

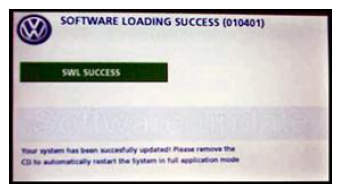

The system has loaded the update properly.
Remove the CD to reboot the navigation unit.

Warranty

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual ⁽¹⁾

Model(s)

Year(s)

Eng. Code(s)

Trans. Code(s)

VIN Range From

VIN Range To

Eos, Passat, Tiguan, CC

2012

All

Golf (Canada Only)

2012

All

SAGA Coding

Claim Type:

Use applicable Claim Type ⁽¹⁾

Service Number:

Damage Code

HST

Damage Location (Depends on Service No.)

9132

0039

Use applicable when indicated in ElsaWeb (L/R)

Parts Manufacturer

Eos, CC, Tiguan, Passat, Golf

VD1

Labor Operation ⁽³⁾: Battery Charge

27068950 = 10 TU

Labor Operation ⁽³⁾: Update Programming of Navigation Unit

91322599 = 80 TU

Diagnostic Time ⁽⁴⁾

GFF Time expenditure

01500000 = 00 TU max.

Road Test

01210002 01210004

Technical Diagnosis

0132xxxx = 00 TU max.

Claim Comment: Input "As per Technical Bulletin 2027965" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with ELSA updates.

⁽⁴⁾	Documentation required per Warranty Policy Procedures Manual.

Required Parts and Tools

No special parts required.

Tool Description	Tool No:
CD	RNS510FLSH3690
VAS Diagnostic Tool	VAS 5051B, 5052A, 6150 (Base CD V19.01.00 and Brand DVD V19.11.01 or higher)
Midtronics Battery Tester/Charger	InCharge 940 (INC-940)

Tip:

Additional copies of the Update - Programming CD may be ordered from Volkswagen Technical Literature Ordering Center at www.vw.techliterature.com.

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
