Update Programming To Address DTC P050A And High Idle Faults (GROUP 01, NO. 11-21)

WARNING: This page is about the CC Lux, 2.0L Eng VIN N, which is a different variant/trim than selected.

Publication date: 2011-11-17
Reference number: GROUP 01, NO. 11-21
Supersedes refnos: 2027882, GROUP 01, NO. 11-20

UPDATE PROGRAMMING TO ADDRESS DTC P050A AND HIGH IDLE FAULTS

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 01, NO. 11-21 (2027882), Date of Issue: November 17, 2011

VOLKSWAGEN:	EOS 2011-2012; CC 2011-2012
GROUP:	01 - On-Board Diagnostic

Superceded Bulletin(s): GROUP 01, NO. 11-20, Date of Issue: November 15, 2011

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
EOS	2011-2012	2.0T (CBFA)	All	AH_BV000001	AH_CV005872
CC	2011-2012	2.0T (CBFA)	All	AN_BE000001	AN_CE519533

Condition

01 11 21 November 17, 2011 2027882 Supersedes T.B. V011120 to correct SVM code.

Update Programming to Address DTC P050A and High Idle Faults

DTC P050A may be stored in the ECM Fault Memory:

DTC	Description
P050A	Cold start idle air control system performance

NOTE: DO NOT diagnose or replace components due to rough idle concerns before performing the update function as explained in this bulletin.

Technical Background

Diagnostic logic is too sensitive. This causes a fault for high idle speed when the secondary air pump is operating.

No further faults are stored in the ECM.

DO NOT replace any parts for this condition.

This condition as described does not affect vehicle performance or operation.

Production Solution

Improved software.

Service

Update-Programming Procedure

Tip:

To Update-Programming using SVM, review and follow instructions in Technical Bulletin Instance 2014603 "Software Version Management".

The SVM Process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim.

NOTE: Prior to launching VAS-PC application and starting control module update process, confirm tester screen saver and power settings in accordance with Special Tools and Equipment - Service Information Circular # VSE-08-18. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure.

When using a VAS 6150/5051B or VAS 5052A tester in conjunction with a VAS 5054A wireless transmitter head for a flash procedure, please connect a USB cable between the transmitter head and the tester. Failure to do so may lead to errors during the flash procedure.

Update the Engine Control Module using the SVM Unit code as listed in the table below:

Model	Engine	Old Software Part No.	Old Software Version	New Software Part No.	New Software Version (or higher)	SVM Unit Code
EOS CC	2.0T (CBFA)	06J 906 027AA	5769 6089 6453	06J 906 027AA	965	3642
		06J 906 027CH	1121 0808 0774	06J 906 027CH	1440	3642
		06J 906 027AR	8909 8073 7488 7202	06J 906 027CH	1440	3642
		06J 906 027AC	5616 6088 6452	06J 906 027AC	9655	3642
		06J 906 027G	8072 7486 7201	06J 906 027CK	0894	3642

The procedure can be found in GFF under Functions/Component Selection, Software Version Management, Adapting Software.

WARNING: Radiator Fan(s) may cycle ON high speed during the Update Process! There is a risk that personal injury may result if contact is made with spinning fan blades.
Keep hands and all objects away from Radiator Fan(s) during Update Process!

Tip:

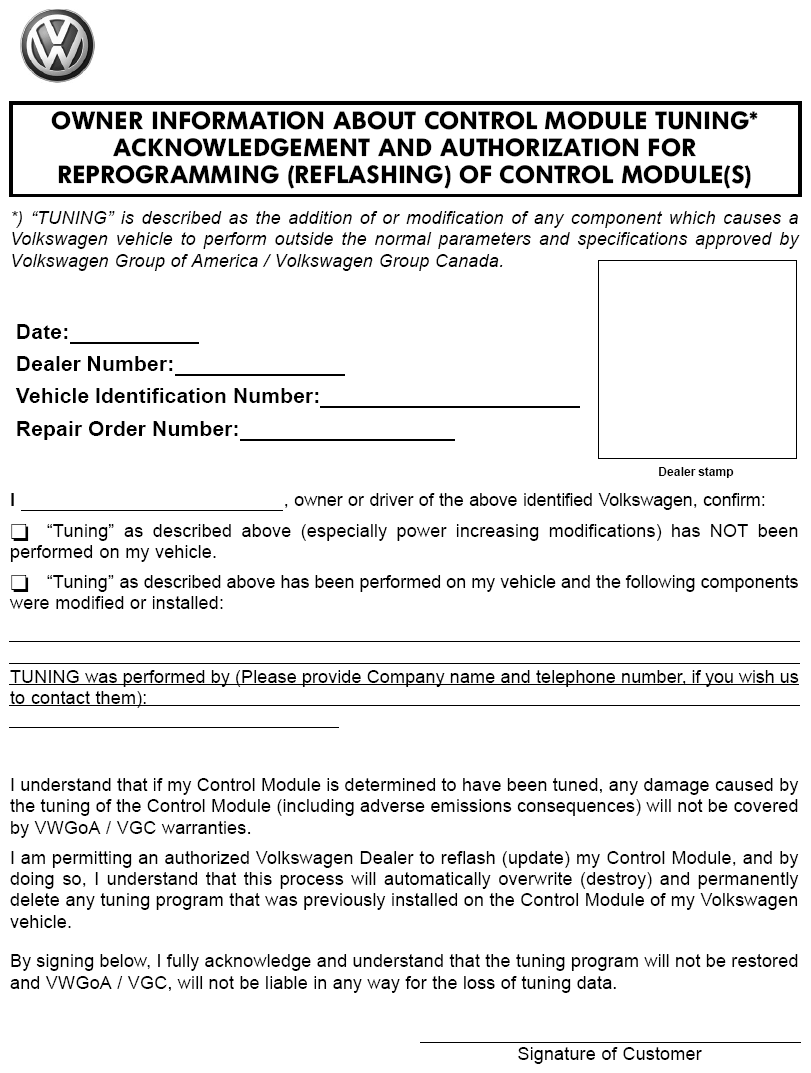

Ensure attached ECM/TCM Tuning Form has been completed and signed by customer as required in SVM Technical Bulletin Instance 2014603 .

Warranty

WARRANTY

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual ⁽¹⁾

Model(s)

Year(s)

Eng. Code(s)

Trans. Code(s)

VIN Range From

VIN Range To

EOS

2011-2012

2.0T (CBFA)

All

AH_BV000001

AH_CV005872

2011-2012

2.0T (CBFA)

All

AN_BE000001

AN_CE519533

Claim Type:

Use applicable Claim Type ⁽¹⁾

SAGA Coding

Service Number:

Damage Code

Damage Location (Depends on Service No.)

Parts Manufacturer (removed part)

2470

0039

Use applicable when indicated in ElsaWeb (L/R)

W W O ⁽²⁾

Labor Operation ⁽³⁾: Charge Battery

27068950 = 10 TU

Labor Operation ⁽³⁾: Update Programming

24702599 = 30 TU

Diagnostic Time ⁽⁴⁾

GFF Time expenditure

01500000 = 10 TU max.

YES

Road Test

01210002 & 01210004

Technical Diagnosis

0132xxxx = XX TU max.

Claim Comment: Input "As per Technical Bulletin 2027882" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with Elsa updates.

⁽⁴⁾	Documentation required per Warranty Policy & Procedures Manual.

Required Parts and Tools

No Special Parts required.

Tool Description	Tool No:
Midtronics Battery Tester/Charger	InCharge 940 (INC-940)
VAS Diagnostic Tool	VAS 5051B, 5052/A, 6150 (Base CD V19.00 and Brand DVD V19.11.01 or higher)

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
