Engine And Transmission Mount, Adjusting

Special tools and workshop equipment required

Engine Support Bridge 10-222 A
Bracket for Engine 10-222 A/1
Bracket with Spindle and Hook 10-222 A/10
Shackle 10-222 A/12
Adapter 10-222 A/18
Torque Wrench (40-200 Nm) VAG1332

Procedure

NOTE:

It is not necessary to remove the air filter housing if only the engine mount needs to be adjusted.

-- Remove the air filter housing and bracket, if necessary, refer to OVERVIEW - AIR FILTER HOUSING .

CAUTION:

Do not place the bracket for engine 10-222 A/1 on the fender panels. They will get damaged.

-- Attach the Shackle 10-222 A/12 to the right lifting eye.

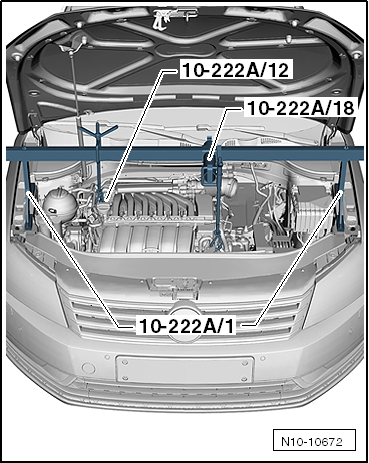

Fig 1: Identifying Engine Support Bridge

GWWN10-10672

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Engine Support Bridge 10-222 A with the Bracket For Engine 10-222 A/1 as illustrated and support the engine in the installed position.

Adjusting the Engine Mount:

Fig 2: Identifying Engine Side Of Assembly Mounting At Engine Bracket At Top

GWWN17-0123

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the engine mount to engine mount bracket bolts -arrows-.

-- Replace the engine mount bolts -arrows- one after the other (if the was not already performed when the engine was installed) and tighten hand tight.

Fig 3: Identifying Engine Mount Bolts

GWWM10-0150

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Align the engine mount: between the engine mount bracket -2- and right longitudinal member, there must be clearance of 10 mm -a-.

Fig 4: Identifying Casting Edge On Engine Support Location

GWWA10-1661

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The casting edge on the engine mount bracket -2- must be parallel to the engine mount support arm -1- ; dimension -x- must be the same at the front and the rear.

-- Tighten the bolts for the engine mount. Tightening specifications, refer to ENGINE AND TRANSMISSION MOUNT OVERVIEW .

Adjusting the Transmission Mount:

Fig 5: Identifying Engine Mount To Engine Mount Bracket Bolts

GWWA10-1796

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the transmission mount to transmission mount bracket bolts -arrows- one after the other (if this was not already performed when the engine was installed) and tighten them hand tight.

-- The edges on the transmission mount support arm -1- and the transmission mount -2- are parallel on the transmission side.

Fig 6: Checking Edges On Support Arm And Transmission Mount Are Parallel

GWWA10-1814

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Dimension -x- is the same size on both sides of the mount.

-- Tighten the transmission mount to transmission mount bracket bolts. Tightening specifications, refer to ENGINE AND TRANSMISSION MOUNT OVERVIEW .

Further installation is in the reverse order of removal.
