Rearview Camera System Component Location Overview

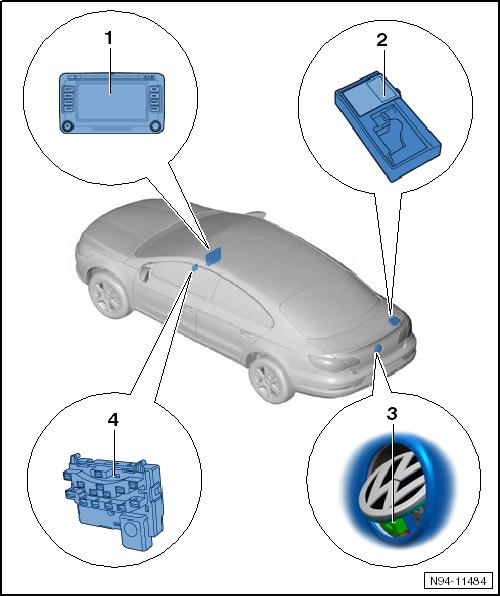

Fig 1: Identifying Rearview Camera System Component Location Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Radio/Navigation Display Control Module -J503-
   • Also called the Radio/RNS -RX1-.
   • Component location: in center console, front.
   • Removing and installing, refer to RADIO/NAVIGATION SYSTEMS -R- / -J503- .
2. Rearview Camera System Control Module -J772-
   • Component location: in the luggage compartment behind the right trim panel.
   • Removing and installing, refer to REARVIEW CAMERA SYSTEM CONTROL MODULE J772 .
   • Rear view camera control module, coding, refer to REARVIEW CAMERA SYSTEM CONTROL MODULE J772, CODING .
3. Pivoting Emblem With The Rear View Camera -R189- and Pivoting Motor
   • Component location: in rear lid.
   • Pivoting emblem bolts in rear lid tightening specification: 4 Nm.
   • Tightening specification for rear view camera housing and pivoting motor bolts in pivoting emblem: 2.5 Nm.
   • Tightening specification for rear view camera housing bolts to pivoting motor: 1.6 Nm.
   • Pivoting emblem with rear view camera housing and pivoting motor in rear lid, removing and installing, refer to REARVIEW CAMERA -R189- .
   • Rear view camera housing with pivoting motor in pivoting emblem, removing and installing, refer to Rear View Camera Housing with Pivoting Motor in Pivoting Emblem, Removing and Installing .
   • Rear view camera, disconnecting from pivoting motor, refer to Rear View Camera, Disconnecting from Pivoting Motor .
   • Rear view camera system, calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
4. Steering Angle Sensor -G85-
   • Component location: in the steering column switch trim, behind the steering wheel.
   • Removing and installing, refer to Removal and Installation .
