Start System Button (E378)

Start System Button (E378)

• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( trim removal wedge (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removing

- Remove the front center console cover.

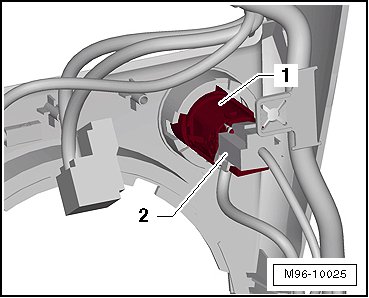

- Disconnect the connector - 2 -.






- Release the tabs and remove the start system button - 1 - from the cover.

Installing

Install in reverse order of removal.
