Instrument Panel Lamps and Controls

Start/Stop Mode Button (E693), Removing and Installing

• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( trim removal wedge (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removing

- Remove the climate controls trim frame.

- Disconnect the connectors.

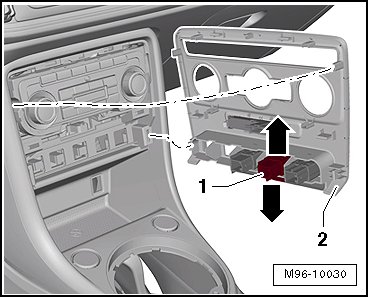

- Open the tabs - arrows - and then remove the start/stop mode button (E693) - 1 -.

Installing

Install in reverse order of removal.
