Converter Box (J935)

Converter Box (J935)

The converter box is found in the relay panel at the vehicle electrical system control module (J519).

• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the driver side instrument panel cover. Refer to Storage Compartments, Covers and Trim.

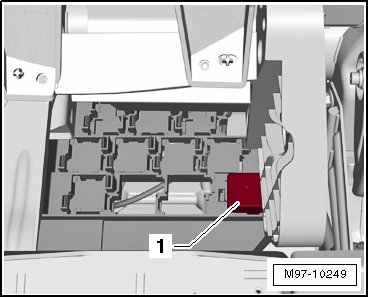

- Remove the converter box - 1 - from the relay panel.






Installing

Install in reverse order of removal.
