Engine Assembly - Fastener Tightening Specifications

Fastener Tightening Specifications

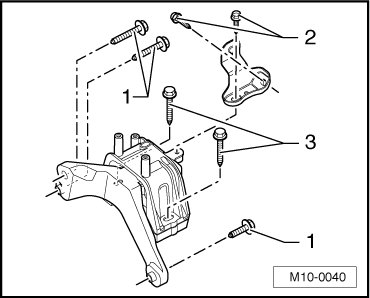

Engine Mount





1. = 40 Nm + 90° (1/4) additional turn 1

2. = 20 Nm + 90° (1/4) additional turn 1

3. = 60 Nm + 90° (1/4) additional turn 1


Transmission Mount





A = 40 Nm + 90° (1/4) additional turn 1
B = 60 Nm + 90° (1/4) additional turn 1

Pendulum Support





• Install the pendulum support to the transmission first and then to the subframe.

A Strength category 10.9 = 50 Nm + 90° (1/4) additional turn 1
B = 100 Nm + 90° (1/4) additional turn 1

Removing: First, remove the bolt - B -, then the bolts - A -.

Installing: First, install the bolts - A -, then the bolt - B -.

• 1 Always replace
