System Specifications

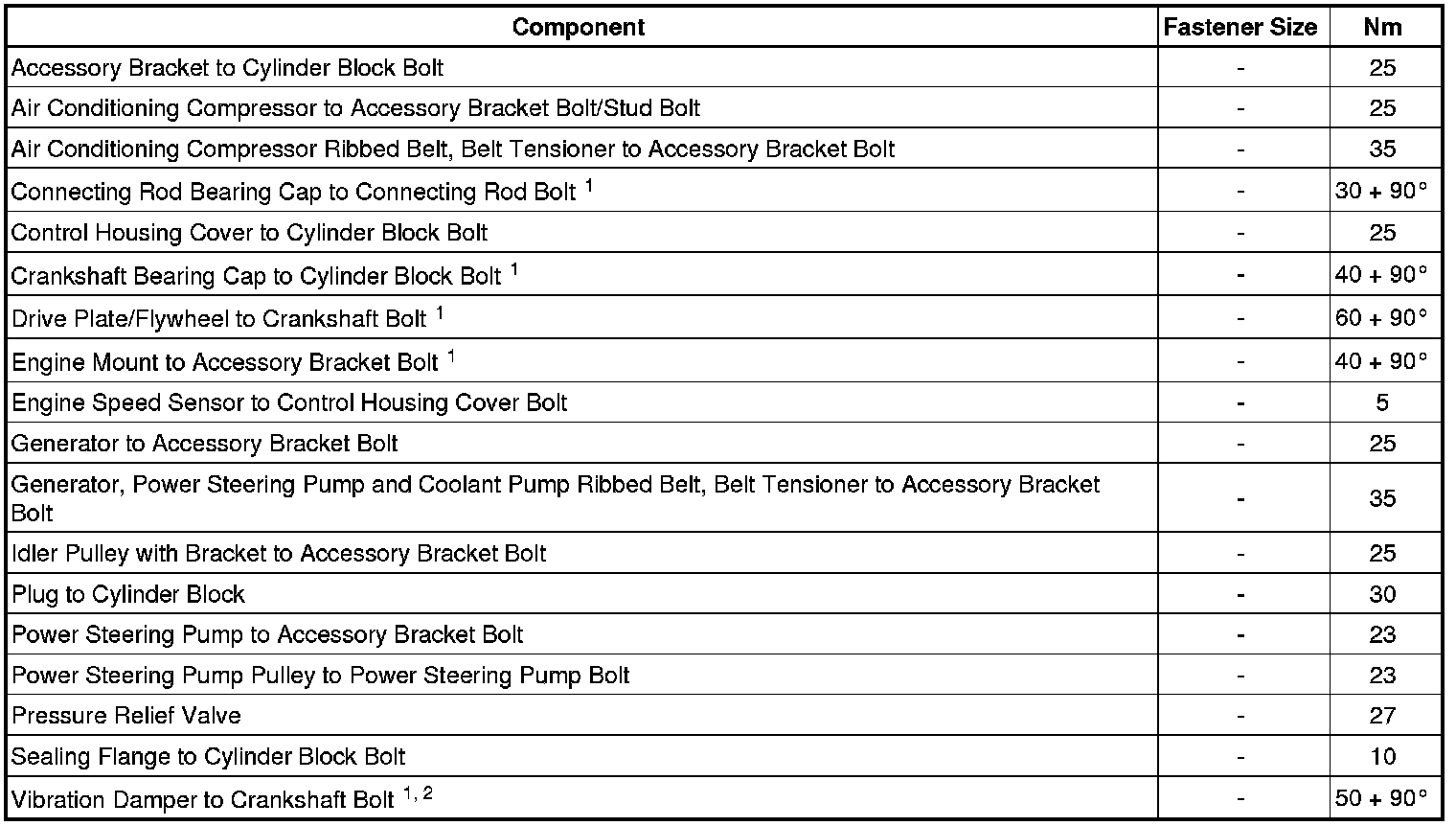

Fastener Tightening Specifications






• 1 Always replace

• 2 Only use a strength category 10.9 bolt
