Wheel Alignment Procedure Overview

Wheel Alignment Procedure Overview

Observe the Following Work Sequence!

- Note the information in the alignment equipment.

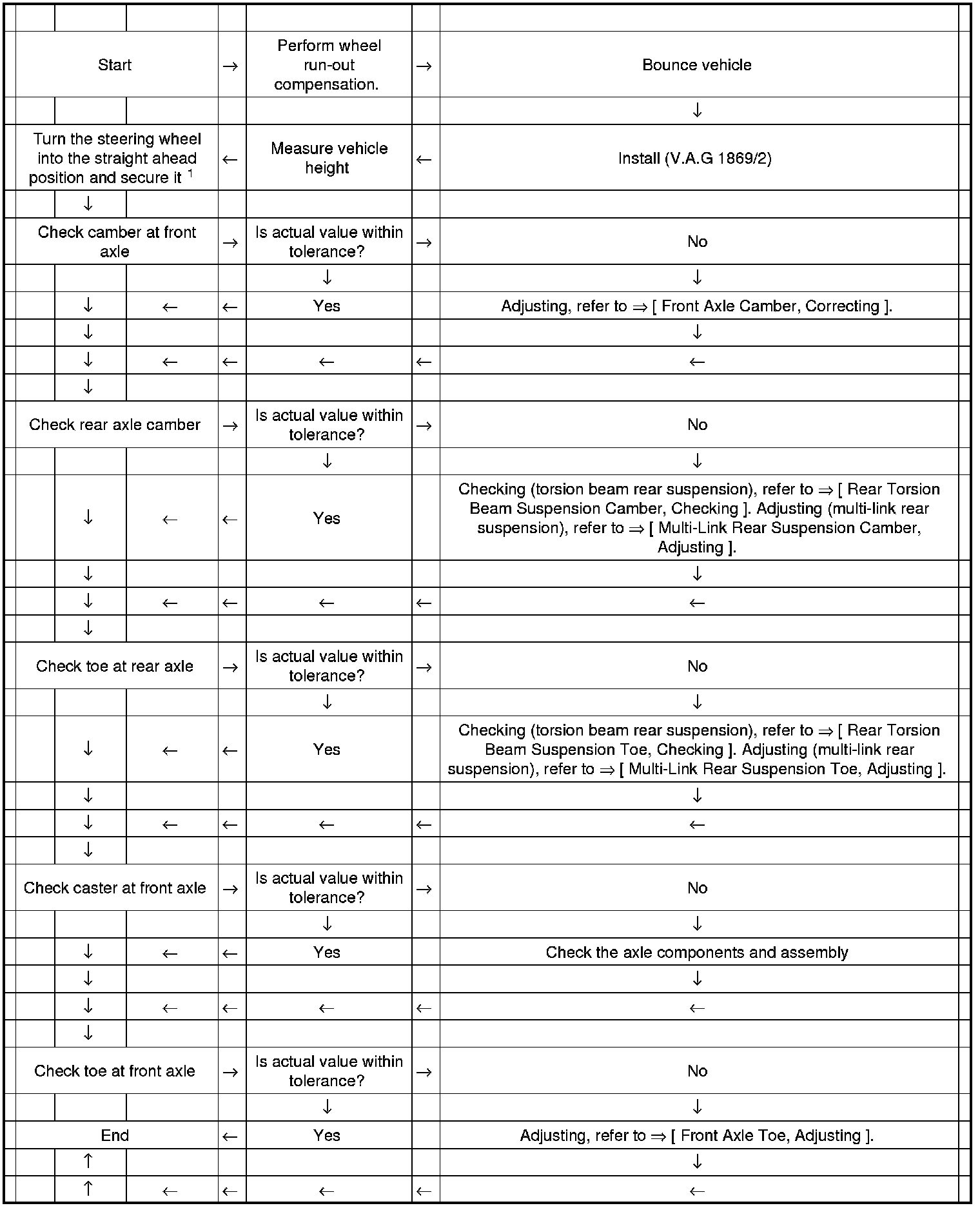

Measuring Procedure






1 If steering wheel is crooked at end of alignment procedure, it must be straightened. Perform a basic setting on the steering angle sensor (G85) using the Vehicle Diagnostic Tester.
