Solar Sensor: Service and Repair

Sunlight Photo Sensor (G107)

Removing

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

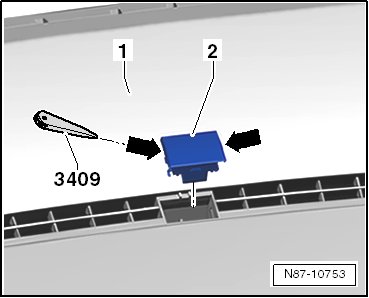

- Unclip the sunlight photo sensor - 2 - with the (3409) at the displayed positions - arrows - from the instrument panel - 1 -.

- Disconnect the harness connector from sunlight photo sensor - 2 -.






Installing

Install in reverse order of removal.
