Front A/C Display Control Head (E87) with A/C Control Module (J301) Multi-Pin Connectors, Pin Assignment

Front A/C Display Control Head (E87) with A/C Control Module (J301) Multi-Pin Connectors, Pin Assignment

Special tools, testers and auxiliary items required

• Test Box (Basic Unit) (V.A.G 1598/14)

• Test Adapter (V.A.G 1598/47)

• Template (V.A.G 1598/47-2)

• Due to differences in equipment levels, use the most current wiring diagram to find the exact assignment of the individual connector positions and pin assignments.

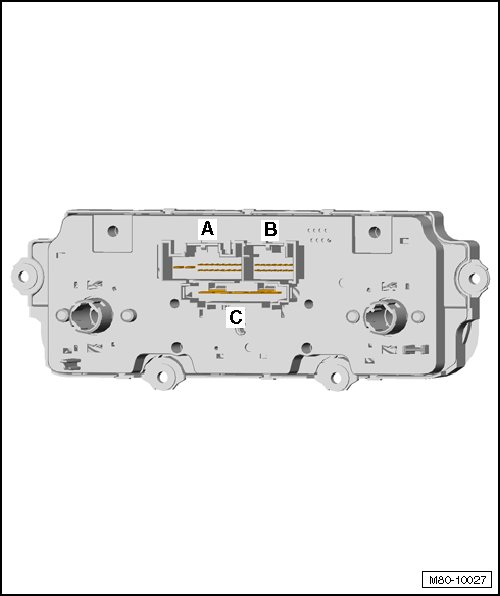

A - Connector 20-pin

• Due to differences in equipment levels, use the most current wiring diagram to locate the connector and pin assignments.

B - Connector 16-pin

• Not assigned

C - Blower Connection - 5 pin

• Use the most current wiring diagram to remove the connector and pin assignments.
