Observe safety precautions.Safety precautions

• Subframe is already removed. Refer to => Suspension, Wheels and Steering 40 Removal and Installation

• In the example, thread repair on this vehicle is described for left front retaining bracket for subframe and is to be employed at the other 3 retaining brackets accordingly as necessary.

Special tools, testers and auxiliary items required

• Thread repair set M 12x1.5 (VAS 6058)

• Drill (VAS 6267)

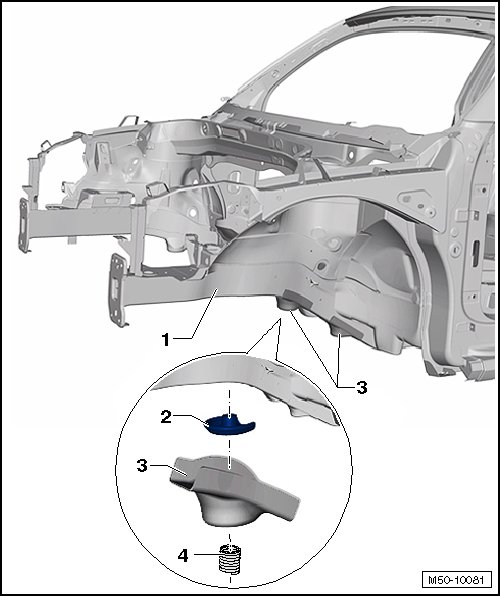

1 Front longitudinal member

2 Threaded plate (welded into subframe retaining bracket)

• The threaded plate is not a replacement part and can be serviced only one time if damaged.

• If damaged again, replace the retaining bracket. Refer to => [ Subframe Bracket, Replacing ] Subframe Bracket.

3 Subframe retaining bracket (welded to the longitudinal member)

4 Helicoil thread insert
