Multimedia System Control Module (J650)

Multimedia System Control Module (J650)

The multimedia system control module is inside the glove compartment.

• Switch off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove any units connected to the multimedia system control module (J650).

- Remove the glove compartment. Refer to Storage Compartments, Covers and Trim.

- Disconnect the connector from the multimedia system control module.

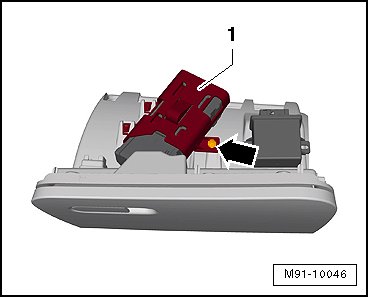

- Remove the screw - arrow - and remove both the multimedia system control module - 1 - and the bracket.






- Remove the bracket from the multimedia system control module - 1 -.

Installing

Install in reverse order of removal.

Tightening specifications, refer to => [ Radio and Radio/Navigation Overview ] Radio and Radio/Navigation Overview.
