Automatic/DSG

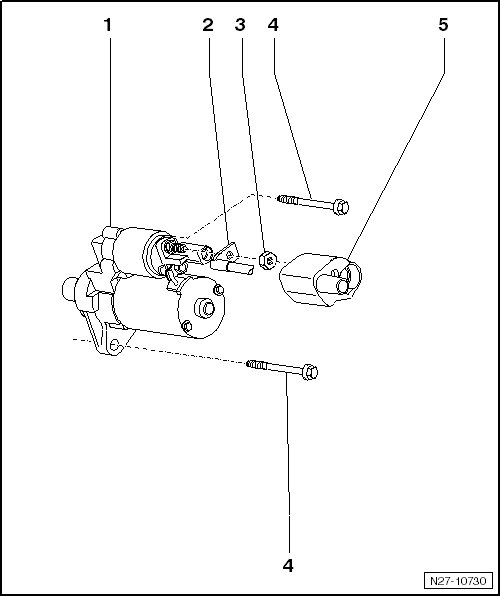

Starter Overview






1 Starter (B)

• Checking, refer to => [ Starter, Checking ] Testing and Inspection.

2 Connection, B+ wire to Starter (B)

3 Nut

• 20 Nm

4 Bolt

• M12 = 75 Nm

• M10 = 40 Nm

5 Cap
