Overview - Distance Regulation Control Module -J428- "Master", Distance Regulation Control Module 2 -J850- "Slave"
NOTE:
The Distance Regulation Control Module -J428- "Master" is shown in the illustration. The location of the components for the Distance Regulation Control Module -J428- "Slave" is a mirror image.

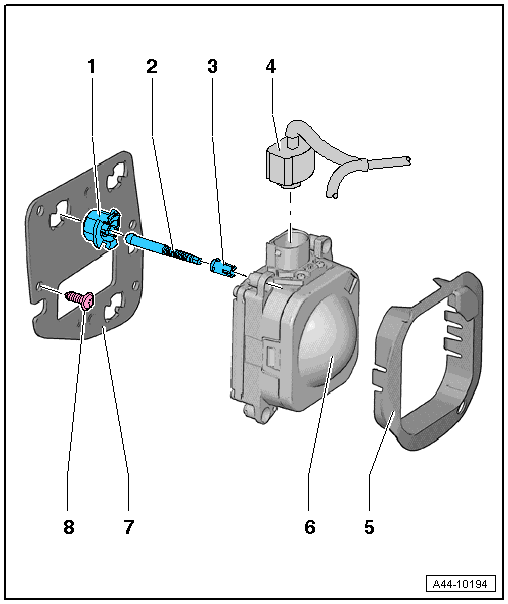

Fig 1: Exploded View Of Distance Regulation Control Module -J428- "Master", Distance Regulation Control Module 2 -J850- "Slave"
- Nut
- Stud Bolt
- Replace the clip if the adjusting screw was removed.
- Note the adjustment dimension when assembling Measure Dimension a on All the Adjusting Screws.
- Clip
- Replace the clip if the adjusting screw was removed.
- Removing and installing. Refer to REMOVE THE CLIP ON THE DISTANCE REGULATION CONTROL MODULE -J428- "MASTER", DISTANCE REGULATION CONTROL MODULE 2 -J850- "SLAVE"
- Connector
- Cover
- Distance Regulation Control Module -J428-
- Removing and installing. Refer to DISTANCE REGULATION CONTROL MODULE -J428-, REMOVING AND INSTALLING
- Bracket
- Bolt
- 4.5 Nm
- Quantity: 4
