Tire Pressure Monitoring Control Module -J502-
Component location:
The tire pressure monitoring control module -J502- is installed on the rear right longitudinal member behind the wheel housing liner.
Perform the following:
Removing
-- Turn off the ignition.
-- Loosen the right rear wheel housing liner in the back and fold it forward. Refer to Wheel Housing Liner .

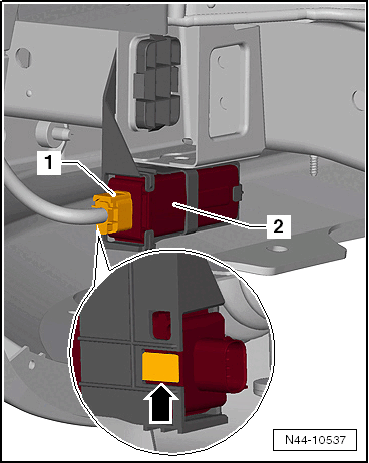

-- Disconnect the harness connector -1-.
-- Lightly press the tab -arrow- to the side and remove the tire pressure monitoring control module -J502- -2- from the mount.
Installing
Install in reverse order of removal.
