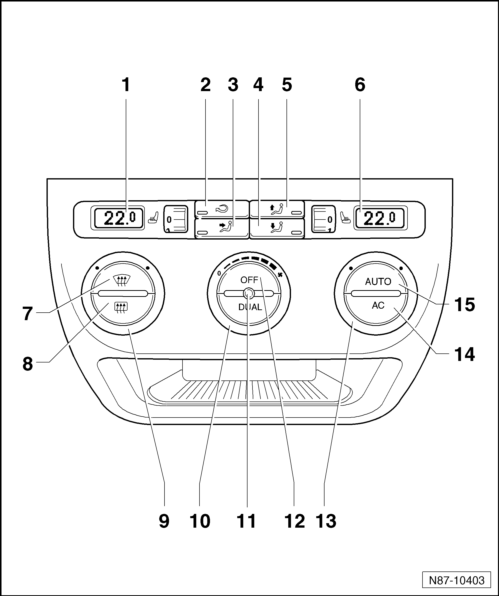

A/C Display Control Head Function
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- Display of selected interior temperature, left side
- Recirculation button, automatic recirculation button from calendar week 5/08.
- Press button for recirculating air function to prevent polluted air from entering interior.
- Press the recirculation button repeatedly to activate the automatic recirculation mode.
NOTE:
- Air Quality Sensor -G238- function, refer to AIR QUALITY SENSOR FUNCTION .
- To prevent the windows from fogging up, the recirculated air door with switch to the fresh air setting after approximately 20 minutes. The warning light in the button Recirculation
stays on.
- Button - Center Air Distribution
- Button - Lower Air Distribution
- Button - Upper Air Distribution
- Display Of Selected Interior Temperature, Right Side
- Windshield Defroster Button
- Push Button for Rear Window Defroster
- Left Interior Temperature Knob
- Blower Regulator
- Changed blower speed by turning.
- Interior Temperature Sensor
- A/C System off Button
- Push Button AUTO
- By pressing the AUTO
button, Climatronic maintains the selected vehicle interior temperature completely automatically. With this setting the vent air temperature, the blower speed and the air distribution are controlled automatically.
- Push Button AC
- If the AC
button is deactivated, the compressor is set to almost no delivery. If the AUTO
button is activated, the heating and ventilation mode will be controlled electronically.
- Right Side Interior Temperature Control
