CRASH SENSOR CONFIGURATION

TECH TIPS

Reference Number(s): TT 69-12-01, Date of Issue: February 3, 2012

VOLKSWAGEN:	2011 Routan
GROUP:	69 - Passenger Protection, Airbag, Seat Belts

SERVICE INFORMATION

2011 Routan - Crash Sensor Configuration

When replacing a front crash sensor, ETKA may list an earlier model crash sensor part number. The Parts group is investigating the cutoff date for Part number 7B0959651 which calls out Chrysler number 04896011AB.

The correct part number for MY 2011 Routan front crash sensors is 7B0909606 which is Chrysler part 56054183AA. The location of the sensors may not be shown in ETKA.

To help aid in proper sensor diagnosis and replacement observe the part numbers and locations below.

NOTE: For 2011 Routan the front, B pillar and rear quarter panel sensors are interchangeable.

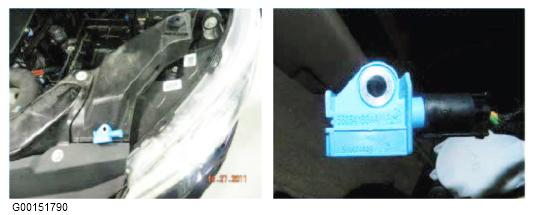

Fig 1: Front Left/Right Lateral Crash Sensor 7B0909606 (CHRY-56054183AA)

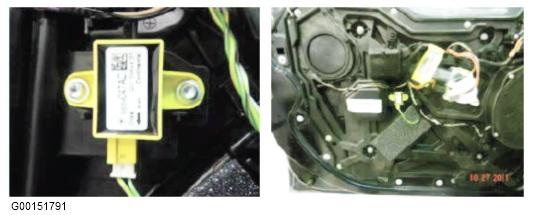

Fig 2: Driver/Pass Door Pressure Sensor 7B0955557A (CHRY-56054047AC)

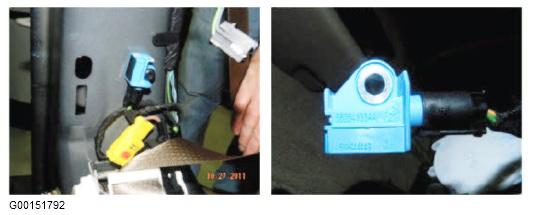

Fig 3: Second Row Left/Right Lateral Crash Sensor 7B0909606 (CHRY-56054183AA) - Location: On B-Pillar Directly Above Front Seat Belt Retractor

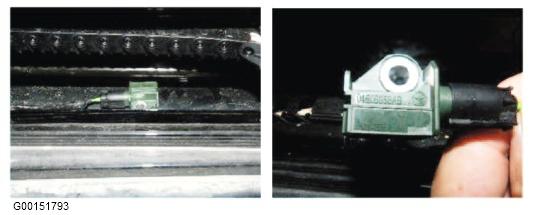

Fig 4: Second Row Front Left/Right Lateral Crash Sensor 7B0959643 (CHRY-04606958AB) - Location: Lower Sliding Door Track

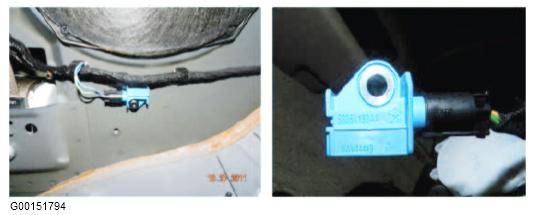

Fig 5: Third Row Left/Right Lateral Crash Sensor 7B0909606 (CHRY-56054183AA) - Location: Rear Quarter Panel Under Speakers
