ATF Cooler, Rectangular Version

Special tools and workshop equipment required

Removing

-- Move the shift selector lever into the "P" position.

-- Remove the engine cover along with the air filter assembly -arrows- . Refer to [For engine(s) CBTA,CBUA] Removal and Installation .

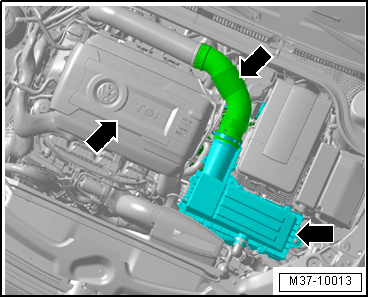

Fig 1: Identifying Engine Cover And Air Filter Assembly

-- Remove the battery and battery tray -arrow- . Refer to Removal and Installation .

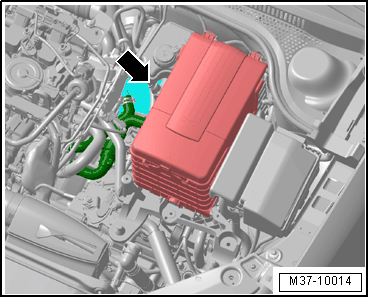

Fig 2: Identifying Battery Tray

-- Disconnect the selector lever cable on the retaining clip -arrow- .

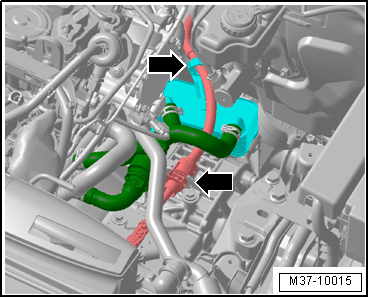

Fig 3: Identifying Selector Lever Cable

NOTE:

Mark the ATF cooler coolant hoses to prevent confusing them when installing them later.

The coolant system is under pressure when the engine is warm.

Cover the cap on the reservoir with a cloth and open it carefully before removing the coolant hoses.

-- Clamp off the coolant hoses with the Hose Clamps - Up To 25mm 3094 -arrows- and remove the hoses from the ATF cooler.

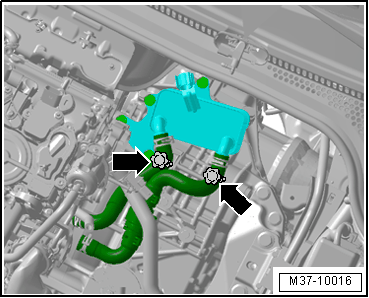

Fig 4: Identifying Hose Clamps

-- Seal the coolant hoses and connections with plugs taken from the Engine Bung Set VAS 6122.

-- Remove the bolts -arrows- and take out the ATF cooler.

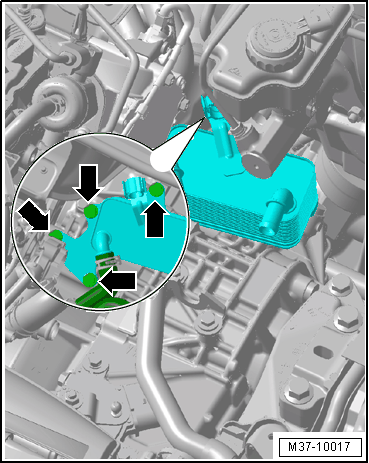

Fig 5: Locating ATF Cooler Bolts

Installing

Install in reverse order of removal. Note the following:

NOTE:

Always replace the O-rings.
