Engine Start - Stop System Switch Stuck (GROUP 28, NO. 11-02)

Publication date: 2011-05-09
Reference number: GROUP 28, NO. 11-02
Supersedes refnos: 2026165

ENGINE START - STOP SYSTEM SWITCH STUCK

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 28, NO. 11-02 (2026165), Date of Issue: May 9, 2011

VOLKSWAGEN:	Jetta 2011
GROUP:	28 - Ignition System

APPLICABLE MODELS AND YEARS

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
Jetta	2011	All	All	BM000001	BM082047
Jetta	2011	All	All	BM300000	BM363805

PARTS INFORMATION

Parts Description		Part No:	Quantity per Repair	Estimated Vehicles	Part Ordering NOTE: at time of release
1.	Start-Stop Switch	5C7959839A	1	3000	Normal ordering process

CONDITION

28 11 02 May 9, 2011 2026165

Engine Start - Stop System Switch Stuck

On vehicles with keyless entry, the button for engine start-stop switch -E378- is stuck.

TECHNICAL BACKGROUND

Deviation in switch dimensions along with molding flash on the storage box incorrect or incorrect cable routing.

PRODUCTION SOLUTION

Optimized components and improved cable routing in production beginning with VINs:

AJ_BM082048
AJ_BM363806

New parts stock supplied CW16/2011.

SERVICE

Align position of wiring and replace start-stop switch.

Remove the storage box / ashtray. See Repair Manual Group 96 Interior Lights, Switches.
Check the cable routing.

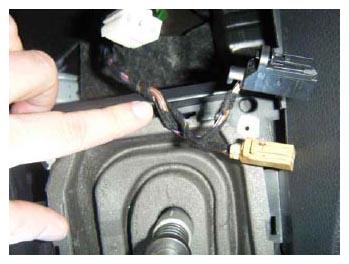

The wiring loom must not be trapped (Fig. 1) between center console and storage box.

Fig. 1
Check wiring loom, loom must not be twisted.
Remove the switch for the starting system -E378-. See Repair Manual Group 96 Interior Lights, Switches.

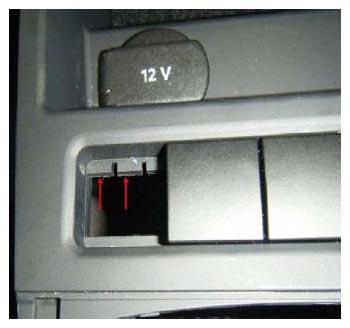

Check the storage box for molding flash (Fig. 2, red arrows). Carefully remove any molding flash.

Fig. 2
Replace the start-stop switch for keyless entry system (5C7.959.839.A) and install the storage box. See Repair Manual Group 96 Interior Lights, Switches.
