Adapting Keys After Vehicle Lock Set Replacement (TT 96-14-02)
Publication date: 2014-02-14Reference number: TT 96-14-02
ADAPTING KEYS AFTER VEHICLE LOCK SET REPLACEMENT
TECH TIPS
Reference Number(s): TT 96-14-02, Date of Issue:
February 14, 2014
| VOLKSWAGEN: | 2008-2014 Vehicles equipped with Immobilizer 4 (Download) |
| GROUP: | 96 - Lights, Switches - Interior, Anti-theft |
SERVICE INFORMATION
2008-2014 Vehicles equipped with Immobilizer 4 (Download) - Adapting Keys after Vehicle Lock Set Replacement

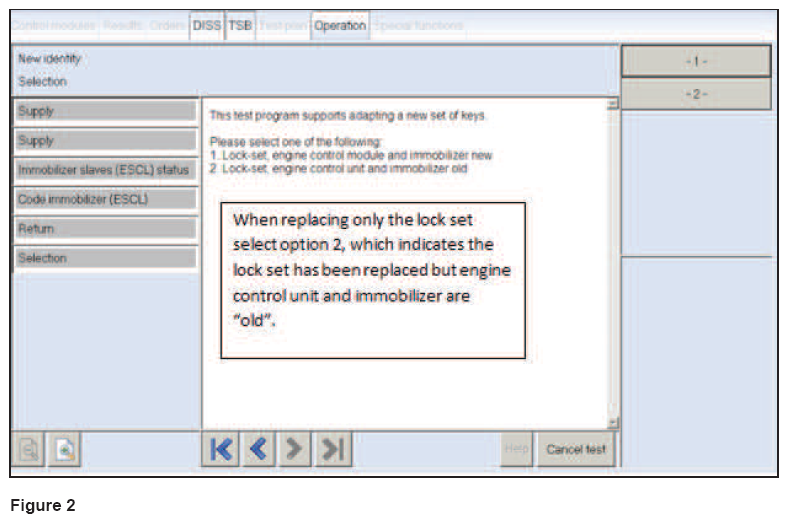

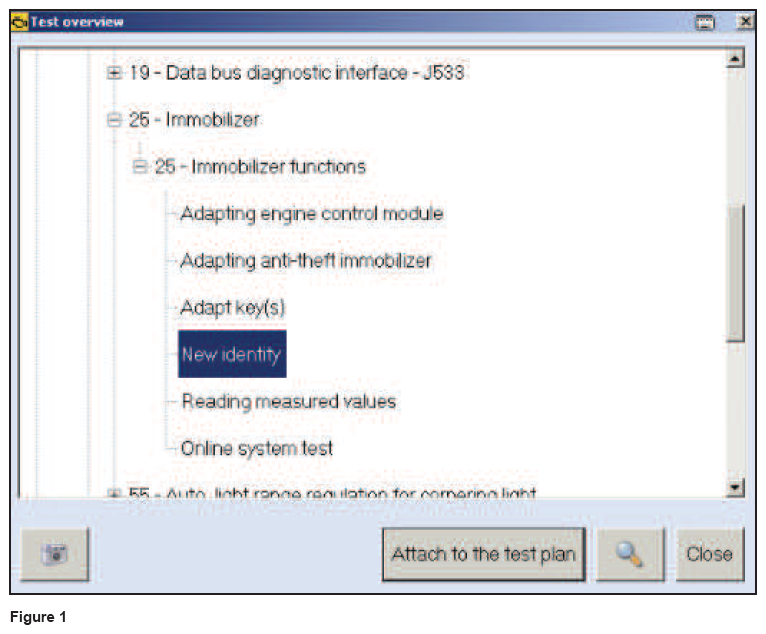

When replacing the complete vehicle lock set (all vehicle keys and lock cylinders) for any reason, be aware that the "Adapt keys" test plan will not allow the new keys to adapt to the vehicle. Instead, perform the test plan for "New identity". During this test plan, make the appropriate selection to indicate only the lock set has been replaced, as shown below in Figures 1 and 2.
