Replacement Radio/Navigation Unit Has No Sound (TT 91-11-17)

Publication date: 2013-05-17
Reference number: TT 91-11-17

REPLACEMENT RADIO/NAVIGATION UNIT HAS NO SOUND

REPLACEMENT RADIO/NAVIGATION UNIT HAS NO SOUND

TECH TIPS

Reference Number(s): TT 91-11-17, Date of Issue:  May 17, 2013
VOLKSWAGEN: 2009-2013 Passat, Jetta, GTI, EOS, Tiguan, Jetta Sportwagen, 2009-2010 Touareg with RNS 510
GROUP: 91 - Radio, Telephone, Navigation
Superceded Bulletin(s): TT 91-11-17, Date of Issue:  October 7, 2011

SERVICE INFORMATION

2009-2013 Passat, Jetta, GTI, EOS, Tiguan, Jetta Sportwagen, 2009-2010 Touareg with RNS 510 - Replacement Radio/Navigation Unit Has No Sound

NOTE: May 17, 2013: Update to Correct Publication Date.

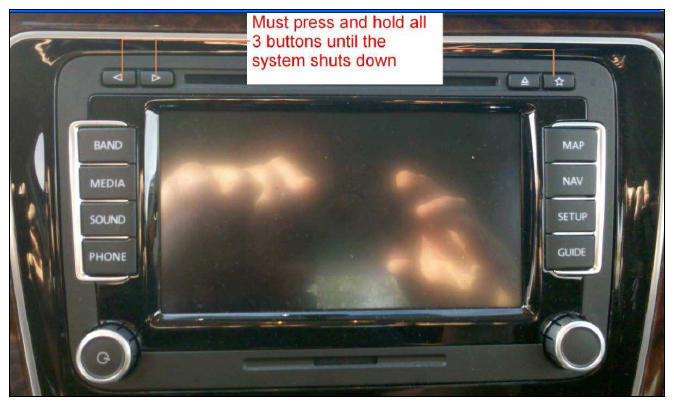

Replacement RNS 510 radio/navigation units may be shipped in transportation safeguard mode and therefore will have no sound output. In order to switch the unit out of this mode, hold down the forward seek button, the back seek button, and the music button at the same time until the unit shuts down. Once the unit is powered back 'ON' the safeguard mode will be deactivated.

G08603491
