Update Programming To Eliminate DTC P050A Stored In ECM Fault Memory (V011328)

Publication date: 2014-02-14
Reference number: V011328
Supersedes refnos: 2026529, GROUP 00, NO. 11-09, GROUP 01, NO. 11-06, GROUP 01, NO. 12-05, GROUP 01, NO. 13-22, GROUP 01, NO. 13-28, GROUP 01, NO. 14-03

UPDATE PROGRAMMING TO ELIMINATE DTC P050A STORED IN ECM FAULT MEMORY

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 01, NO. 14-03 (2026529), Date of Issue: February 14, 2014

VOLKSWAGEN:	2011 Jetta (A6)
GROUP:	01 - On-Board Diagnostic

Superceded Bulletin(s): GROUP 01, NO. 13-28, Date of Issue: August 13, 2013

APPLICABLE MODELS AND YEARS

Model(s)	Year(s)	Eng. Code(s)	Trans. Code(s)	VIN Range From	VIN Range To
Jetta (A6)	2011	2.0L (CBPA)	Manual	All	All

CONDITION

01 14 03 February 14, 2014 2026529 Supersedes Technical Bulletin V011328 dated August 13, 2013 to update part number, software version and SVM code.

Update Programming to Eliminate DTC P050A Stored in ECM Fault Memory

DIAGNOSTIC TROUBLE CODES

DTC	Description
P050A	Cold Start Idle Air Control System Performance

TECHNICAL BACKGROUND

Customers may complain of a MIL ON condition, which is caused by DTC P050A.

DO NOT replace any parts for this condition.

The condition as described does not affect vehicle performance or operation.

PRODUCTION SOLUTION

Improved software was introduced in production.

SERVICE

Update Programming Procedure

Tip:

To Update-Programming using SVM, review and follow instructions in Technical Bulletin Instance 2014603 "Software Version Management".

The SVM Process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim.

NOTE: Prior to launching the VAS-PC and ODIS service diagnostic applications and starting control module update process, confirm tester screen saver and power settings in accordance with Special Tools and Equipment - Service Information Circular # VVT-12-02. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure.

When using a VAS 6150/5051B or VAS 5052A tester in conjunction with a VAS 5054A wireless transmitter head for a flash procedure, please connect a USB cable between the transmitter head and the tester. Failure to do so may lead to errors during the flash procedure.

VAS tools must only be used with their power adapters plugged in. Under no circumstances should they be used on battery power alone during the programming procedure.

Critical Warning: The Midtronics Battery Charger must be connected to the vehicle battery for the duration of the programming, to ensure the battery state of charge remains above 12.5 volts during the update process. If the battery drops below 12.5 volts, the programming could fail which may result in damage to the control module. Control modules damaged by inadequate voltage will not be covered under the warranty policy. The technician should verify the vehicle voltage prior to starting the update process, and should monitor the voltage for the duration of the update.

Update the Engine Control Module using the SVM action code as listed in the table below:

SOFTWARE VERSION MANAGEMENT

Model	Engine	Old Software Part No.	Old Software Version	New Software Part No. New	Software Version (or higher)	SVM Action Code
Jetta (A6)	2.0L (CBPA)	06G 906 055 B	All	06G 906 055 AD	1302	3989
Jetta (A6)	2.0L (CBPA)	06G 906 055 C	All	06G 906 055 AE	1302	3989

The procedure can be found in GFF under Functions/Component Selection, Software Version Management, Adapting Software.

Tip:

Upon completion of software update, verify Cruise Control function (if originally equipped) is activated via GFF Function Test Plan 01 - Activate/Deactivate Cruise Control System.

WARNING: Radiator Fan(s) may cycle ON high speed during the Update Process! There is a risk that personal injury may result if contact is made with spinning fan blades.

Keep hands and all objects away from Radiator Fan(s) during Update Process!

Tip:

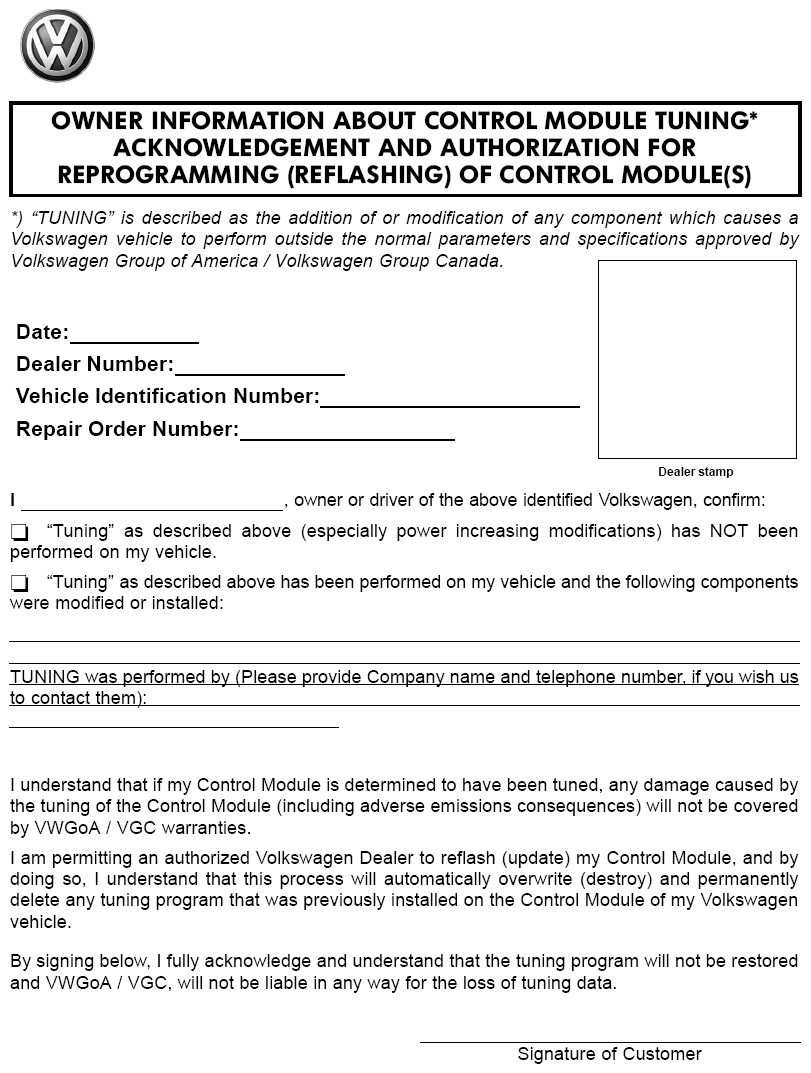

Ensure attached ECM/TCM Tuning Form has been completed and signed by customer as required in SVM Technical Bulletin Instance 2014603 .

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual ⁽¹⁾

Model(s)

Year(s)

Eng. Code(s)

Trans. Code(s)

VIN Range From

VIN Range To

Jetta (A6)

2011

2.0L (CBPA)

Manual

All

Claim Type:

Use applicable Claim Type ⁽¹⁾

SAGA Coding

Service Number:

Damage Code

HST

Damage Location (Depends on Service No.)

2470

0039

Use applicable when indicated in ElsaWeb (L/R)

Parts Manufacturer

Jetta

3ME ⁽²⁾

Labor Operation ⁽³⁾: Update Programming

24702599 = 30 TU

Labor Operation ⁽³⁾: Charge Battery

27068950 = 10 TU

Causal Part: Select Labor Operation

24702599

Diagnostic Time ⁽¹⁾

GFF Time expenditure

01500000 = 30 TU max.

YES

Road Test

01210002 = 00 TU
01210004 = 00 TU

Technical Diagnosis

01320000 = 00 TU max.

Claim Comment: Input "As per Technical Bulletin 2026529" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with ELSA updates.

⁽⁴⁾	Documentation required per Warranty Policy & Procedures Manual.

REQUIRED PARTS AND TOOLS

No Special Parts required.

TOOL INFORMATION

Tool Description	Tool No:
Midtronics Battery Tester/Charger	InCharge 940 (INC-940)
VAS Diagnostic Tool	VAS 5051B, VAS 5052A, VAS 6150/X&VAS 6160/X with: ODIS Service 2.0.0 or higher with current online updates

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.

ATTACHMENT
