Fuel Line Connections (TT 20-13-02)

Publication date: 2013-05-10
Reference number: TT 20-13-02

FUEL LINE CONNECTIONS

TECH TIPS

Reference Number(s): TT 20-13-02, Date of Issue: May 10, 2013

VOLKSWAGEN:	2009-2013 Beetle, CC, Eos, Golf/GTI, Jetta, Jetta Sportwagen, Passat, Tiguan
GROUP:	20 - Fuel Supply

SERVICE INFORMATION

2009-2013 Beetle, CC, Eos, Golf/GTI, Jetta, Jetta Sportwagen, Passat, Tiguan - Fuel Line Connections

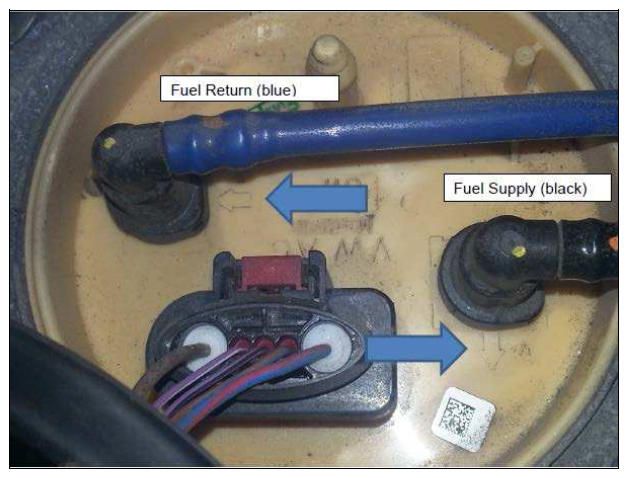

Be aware that fuel lines are color coded on vehicles with return fuel pressure lines. The black line is for fuel pressure supply and the blue line is for fuel pressure return. To verify correct line installation, remove the metal cover exposing the fuel pump flange assembly (generally under the rear seat). Refer to the ELSA Repair Manual for specific location. Check for raised arrows on the flange housing. The black line (Fuel Pressure Supply) attaches to the connection with the arrow pointing away from it. The blue line (fuel return) attaches to the connection with arrow pointing to it.

On 2009-2013 Common Rail Diesel Engines with a whining noise from the auxiliary fuel pump, verify correct fuel line installation at the in tank fuel pump. Additionally, verify correct line installation at the fuel filter (compare to a like unit or Elsa Repair Manual).
