Media-In (MDI) Overview (GROUP 91, NO. 12-16)
Publication date: 2012-08-10Reference number: GROUP 91, NO. 12-16
Supersedes refnos: 2022802, GROUP 91, NO. 10-06, GROUP 91, NO. 10-29, GROUP 91, NO. 11-18
MEDIA-IN (MDI) OVERVIEW
TECHNICAL SERVICE BULLETIN
| VOLKSWAGEN: | All (except Routan) 2009-2013 |
| GROUP: | 91 - Radio, Telephone, Board Computer, Multi-Function Indicator (MFI) |
| Model(s) | Year | Eng. Code | Trans. Code | VIN Range From | VIN Range To |
|---|---|---|---|---|---|
| All (except Routan) | 2009-2013 | All | All | All | All |
CONDITION
91 12 16 August 10, 2012 2022802 Supersedes T.B. V911118 dated July 22, 2011 to update cable warranty coverage.

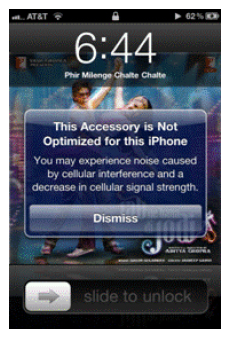

Tip: The following screen shot illustrates an iPhone 4G using a non iPod tagging MDI cable. This is a generic Apple disclaimer as the standard iPod MDI cable does not contain Apples Authentication microchip. The new iPod tagging MDI iPod cable has this functionality. For more information see instance 2026784Multimedia Interface (MDI), iPod® Tagging Overview .
TECHNICAL BACKGROUND
To provide an overview of:
- MDI Software
- MDI Cable Diagnosis
- Wiring Pin-out Charts
- iPod charging
- MDI Replacement
- MDI Cable Part Numbers
- iPod Compatibility List (See attachment)
PRODUCTION SOLUTION
Not applicable
SERVICE

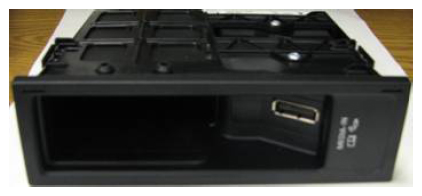

MDI Software
For sporadic concerns and other functionality problems see instance 2024337Factory Installed Media-In (MDI), Updated Programming for Various iPod® Concerns. This updates the MDI to software 0240.
MDI Cable Diagnosis
The following concerns can be checked by manipulating the cable or by substituting a known good cable:
- Sporadic or complete loss of left and/or right audio channel
- iPod battery charging is intermittent
- Device not recognized
Tip: The new iPod tagging cable only recognizes iPod Nano gen 5+ and newer iPod/iPhones. For more information see instance 2026784Multimedia Interface (MDI), iPod® Tagging Overview.
If functionality returns after cable manipulation, then replace cable.
Tip: Older iPods may not connect securely due to connector design changes. To verify MDI cable integrity test the connection with a newer compatible iPod or iPhone® device.
Media-In (MDI) Pin-out Charts
Description of pin-out charts from Media-In to Radio and Media-In to Auxiliary (Aux) Jack (if applicable)
| MDI | Description | Device | Problem if wiring damaged |
|---|---|---|---|
| T12m/1 | Ground | Not applicable |
|
| T12m/2 | Can Low | Not applicable |
|
| T12m/3 | Not Used | Not applicable |
|
| T12m/4 | Sound - Right | Radio T12c/7 |
|
| T12m/5 | Sound - Left | Auxiliary Jack T4/3 |
|
| T12m/6 | Sound - Right | Auxiliary Jack T4/1 |
|
| T12m/7 | Power | Radio T12c/4 |
|
| T12m/8 | Can High | Not applicable |
|
| T12m/9 | Sound - Left | Radio T12c/1 |
|
| T12m/10 | MDI - Ground | Radio T12c/4 |
|
| T12m/11 | Aux - Ground | Auxiliary Jack T4/2 |
|
| T12m/12 | Aux - Shielding | Auxiliary Jack T4/4 |
|
iPod Charging
- MDI supports both 5 volt & 12 volt charging
MDI Replacement
Always inspect the MDI cable and verify cable connectivity prior to replacing MDI module. The following should be checked before MDI replacement:
- MDI Cable
- Customer's device
- Comparison of a known good vehicle
- List of iPod software concerns
- Wiring
Media-In (MDI) Cable Part Numbers
| Media-In (MDI) Cable | Part Number |
|---|---|
| iPod (non tagging) | 000051446C 5N0035554 |
| Mini USB | 000051446A |
| USB | 000051446B |
| Auxiliary Jack | 000051446D |
| iPod Tagging Compatible | 000051446J 5N0035554B |
Tip: The USB MDI cable cannot be used in conjunction with the USB cable provided with the digital playback devices. The devices will not operate properly. The iPod Shuffle, however, can use the USB cable 000051446B.
Warranty Coverage

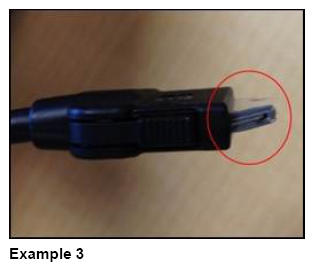

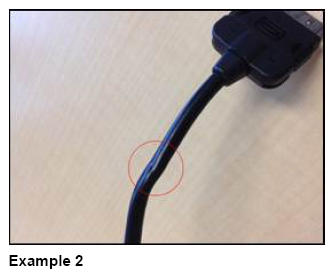

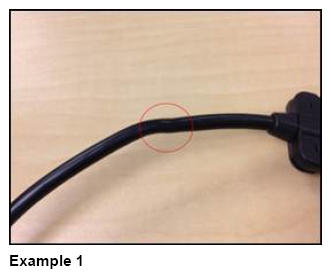

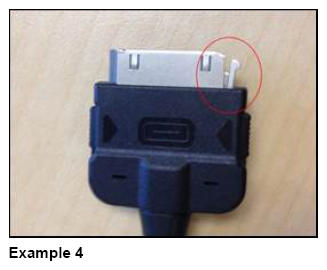

Warranty coverage on MDI/iPod cables is limited to shortcomings in materials or workmanship. Cables which exhibit damage from an outside influence are not covered under Volkswagen warranty. See photos below. Claims submitted for MDI/iPod cables which have visible signs of damage will be denied.
WARRANTY
Information only.
REQUIRED PARTS AND TOOLS
No Special Parts required.
No Special Tools required.
ADDITIONAL INFORMATION
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
ATTACHMENT
| iPod Type | Capacity | Firmware | Supported | Notes |
|---|---|---|---|---|
| iPod (1st gen) | 5 or 10 GB | NA | No | |
| iPod (2nd gen) | 10 or 20 GB | NA | No | |
| iPod (3rd gen) | 10, 15, 20 or 30 GB | NA | No | iPod 3rd gen can not be charged by MEDIA-IN. The battery needs to be charged by an external source |
| iPod Photo (4th gen) | 20, 30, 40, 60, or 80 GB | 3.1.1 | Yes | |
| iPod Video (5th gen) | 30, 60 or 80 GB | 1.3 | Yes | |
| iPod Classic (6th gen) | 80, 10, or 160 GB | 1.1.2 | Yes | |
| iPod Classic (7th gen) | 160 GB | 1.1.2 | Yes | |
| iPod Mini (1st gen) | 4 GB | NA | No | |
| iPod Mini (2nd gen) | 4 or 6 GB | 1.4.1 | Yes | |
| iPod Nano (1st gen) | 1, 2, or 4 GB | 1.0.3 | Yes | |
| iPod Nano (2nd gen) | 2, 4 or 8 GB | 1.0.3 | Yes | |
| iPod Nano (3rd gen) | 4 or 8 GB | 1.0.3 | Yes | |
| iPod Nano (4th gen) | 8 or 16 GB | 1.0.3 | Yes | |
| iPod Nano (5th gen) | 8 or 16 GB | 1.0.3 | Yes | |
| iPod Nano (6th gen) | 8 or 16 GB | 1.0.3 | Yes | |
| iPod Shuffle (1st gen) | 512 MB | NA | No | |
| iPod Shuffle (1st gen) | 1GB | 1.0.3 | Yes | MP4-tracks with copy protection can not be played |
| iPod Shuffle (2nd gen) | 1GB | 1.0.3 | Yes | |
| iPod Shuffle (3rd gen) | 4 GB | NA | No | |
| iPod Touch (1st gen) | 8, 16, or 32 GB | 4.3 or higher | Yes | |
| iPod Touch (2nd gen) | 8, 16, 32, or 64 GB | 4.3 or higher | Yes | |
| iPod Touch (3rd gen) | 8, 32, or 64 GB | 4.3 or higher | Yes | |
| iPod Touch (4th gen) | 8, 32, or 64 GB | 4.3 or higher | Yes | |
| iPhone (1st gen) | NA | NA | No | |
| iPhone (2nd gen) | NA | NA | No | |
| iPhone (3rd gen) | NA | 4.3 or higher | Yes | |
| iPhone (4th gen) | NA | 4.3 or higher | Yes | |
| iPad | Yes | Unit must be secure. MDI software must be 0240 or higher |
