Window Switch Replacement (TT 64-12-02)
Publication date: 2014-10-03Reference number: TT 64-12-02
WINDOW SWITCH REPLACEMENT
TECH TIPS
Reference Number(s): TT 64-12-02, Date of Issue:
October 3, 2014
| VOLKSWAGEN: | 2011-2015 Jetta |
| GROUP: | 64 - Glass, Window Regulator |
SERVICE INFORMATION
2011-2015 Jetta - Window Switch Replacement
October 3, 2014: Update to information.

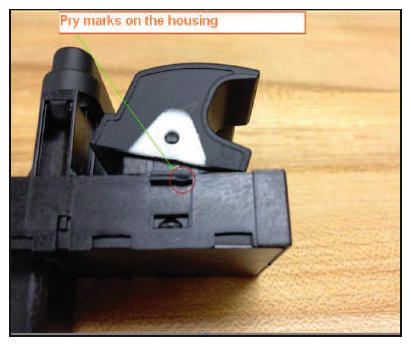

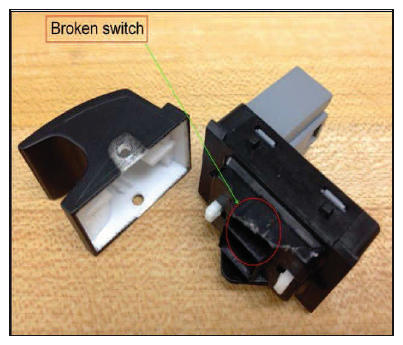

Be advised that when replacing a window switch on the listed models, make certain that the switch is not damaged during the removal process. It is preferred to use a bone tool to remove the switch from the housing as opposed to a screwdriver, to prevent the risk damage (see examples below). It is also recommended to remove the window switch prior to removal of a door trim panel. This is in order to avoid the weight of the trim damaging the switch or the wire harness. Always check the connections and wiring prior to replacement of the switch.
