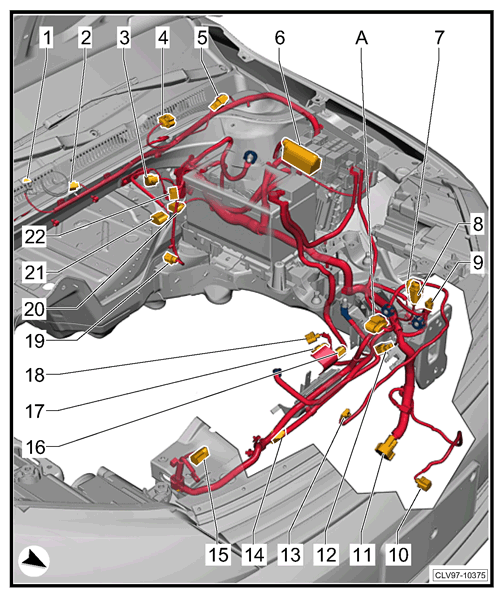

Engine Compartment, Driver I
- Battery Monitoring Control Module -J367-, Not Shown. Located On Battery Positive Connection To Battery.
- 1 - Structure-borne sound actuator -R214-
- 2 - Alarm system horn -H18-
- 2 - Structure borne sound control module -J869-, not shown. Located on fire wall behind plenum chamber.
- 3 - 6-pin connector -T6w-
- 4 - Wiper motor control module -J400-
- 4 - Driver windshield wiper motor -V216-
- 5 - Alarm horn -H12-
- 6 - Engine control module -J623-
- 7 - Left front headlamp -MX1-
- 7
- Secondary air injection pump motor -V101- behind wheel noise insulation
- For CNLA engine, refer to 1.4L CNLA Rearview
- 8 - Double connector -T2n-
- 9 - Driver front airbag crash sensor -G283-
- 10 - Outside air temperature sensor
- 11 - Coolant fan control module -J293-
- 11 - Coolant fan -V7-
- 11 - Coolant fan 2 -V177-
- 11 - Right coolant fan -V35-
- 11 - Coolant fan control thermal switch -F18-
- 12 - Double connector -T2i-
- 12 - 4-pin connector -T4t-
- 13 - Engine hood contact switch -F266-
- 15 - Generator with voltage regulator -CX1-
- 16 - Starter -B- - Kl.50
- 17
- Starter -B- - Kl.B+ (30)
- 18 - Back-up lamp switch -F4-
- 19 - Brake pedal switch -F47-
- 19 - Brake pedal switch -FX2-
- 19 - Brake lamp switch -F-
- 20 - Clutch position sensor -G476-
- 21 - Brake booster pressure sensor -G294-
- 21 - Vacuum sensor -G608- not shown.
- 22 - Brake fluid level warning switch -F34-
- A - 14-pin connector -T14-
