Special Tools

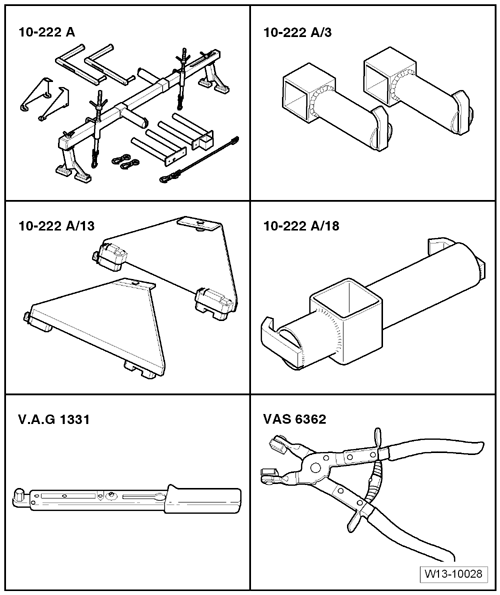

Fig 1: Identifying Special Tools And Workshop Equipment Required

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine Support Bridge 10-222A
• Engine Support Bridge - Engine Support 310-222A/3
• Engine Support Bridge - Gearbox Adapter 10-222A/13
• Engine Support Bridge - Engine Support 1810-222A/18
• Torque Wrench 1331 5-50Nm VAG1331
• Hose Clip Pliers VAS 6362

Special tools and workshop equipment required

• Engine Support - Automatic Transmission Adapter 10-222A/16
• Engine Bung Set VAS 6122
• Lifting Tackle 3033
• Hose Clamps - Up To 25mm 3094
• Torque Wrench 1332 40-200Nm VAG1332
• Step Ladder
• Engine And Transmission Holder VAS 6095
• Wrench - Sw13T10384
• Engine/Transmission Holder - Universal Mounting VAS 6095/1
• Shop Crane - Drip Tray VAS 6208
  Fig 2: Identifying Drip Tray For Shop Crane VAS 6208

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Transportation Lock T10404
  Fig 3: Identifying Transportation Lock T10404

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine/Gearbox Support Shackle (2 pc.) 10-222A/12
  Fig 4: Identifying Shackle 10 - 222 A/12

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane VAS 6100
  Fig 5: Identifying Shop Crane VAS 6100

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
