Engine Mount And Bracket: Notes

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Removal

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the plenum chamber cover. Refer to Removal and Installation .

-- Open the couplings -A- and -B- and remove the fuel lines. Open the couplings. Refer to General Information .

Fig 1: Identifying Fuel Line Couplers
GWWN10-10526Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
WARNING:

Very hot fuel can burn your skin.

  • The temperature of the fuel lines and may reach 100 °C after stopping the engine. Let the fuel cool down before opening any line connections otherwise there is a danger of scalding.
  • Wear safety gloves
  • Wear protective eyewear.

-- Unclip the coolant hose bracket -1-.

Fig 2: Identifying Coolant Hose Bracket
GWWN20-10806Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the fuel lines.

-- Remove the fuel filter -7- from the mountings -1- through -3- and lay it on the engine.

Fig 3: Fuel Filter, Fuel Hoses And Bolts
GWWA20-10395Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Refer to Description and Operation .

-- Disconnect and remove the connector for the coolant reservoir -2-.

Fig 4: Identifying Coolant Reservoir, Bolts, And Connector
GWWN47-10112Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3- and the coolant reservoir -2-.

-- Unclip and free up the wire -1-.

-- Lay the coolant reservoir -2- on the engine.

-- Disconnect the connector -2-.

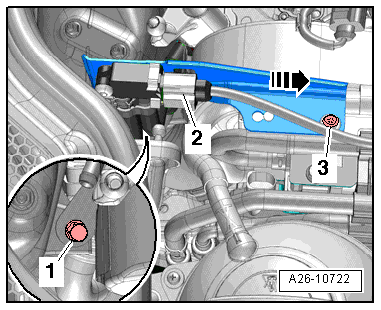

Fig 5: Disconnecting Connector -2- On Exhaust Pressure Sensor 1 -G450
GWWA26-10722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the heat shield and disconnect the connector from Differential Pressure Sensor -G505-. Refer to:

-- Disconnect the control line from Differential Pressure Sensor -G505-.

-- Loosen the spring clamp using Hose Clip Pliers VAS 6362.

-- Remove the bolts and bracket with the Exhaust Pressure Sensor 1 -G450- and lay them aside (the control wire to the particulate filter remains connected).

-- Remove the screw -3- and then remove the Differential Pressure Sensor -G505- from the bracket -arrow-.

-- Remove the screw -1- at the top of the particulate filter mount.

-- Lay the Differential Pressure Sensor -G505- and mount on the particulate filter.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set VAS 6122.

Fig 6: Identifying Particulate Filter Mount
GWWN15-10495Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lay the Differential Pressure Sensor -G505- and mount on the particulate filter.

-- Remove the bolt -1-.

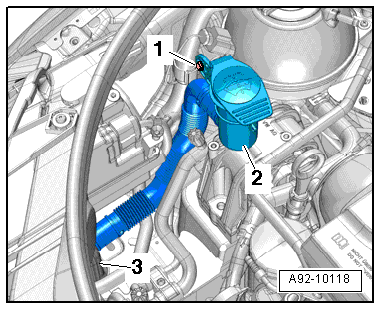

Fig 7: Identifying Windshield Wiper Fluid Reservoir Filler Tube -2- And Bolt
GWWA92-10118Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the filler tube and windshield wiper fluid reservoir filler tube -2- to the side.

NOTE:

Ignore -item 3-.

-- Support the engine in its installed position. Refer to ENGINE, SUPPORTING IN INSTALLED POSITION .

-- Tension the engine slightly via the spindles do not lift it.

-- Remove the bolts -A- and the bracket.

Fig 8: Identifying Engine Mount & Bolts
GWWN10-0448Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -B- and -C-.

-- Remove the engine mount upward.

Installing

Install in reverse order of removal. Note the following:

CAUTION:

Risk of damaging threads in transmission support by inserting bolts crooked.

  • The transmission support and the transmission mount support arm must be absolutely parallel to each other before installing bolts. Push the transmission up using a floor jack if necessary.
CAUTION:

When doing any repair work, especially in the engine compartment, pay attention to the following due to clearance issues:

  • Route all lines in their original locations.
  • To prevent damage to the lines, make sure there is sufficient clearance to all moving or hot components.

-- Adjust the subframe mount. Refer to SUBFRAME MOUNTS, ADJUSTING .
