Abs System Components At Rear Axle Assembly Overview, Fwd

WARNING: This page is about a different variant/trim than selected.

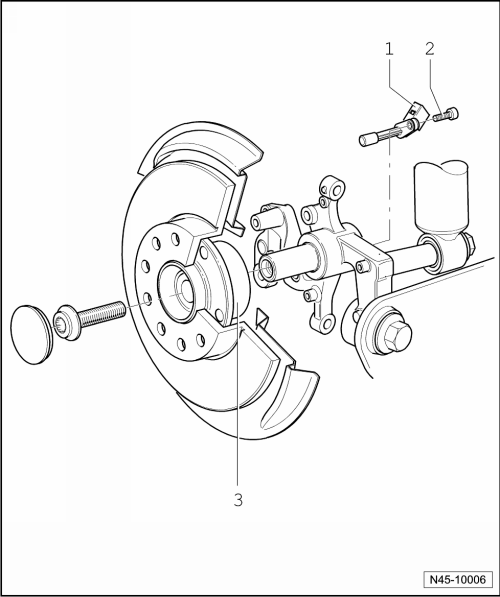

Fig 1: Identifying ABS System Components On Rear Axle, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

ABS Wheel Speed Sensor
- Before inserting sensor, clean inner surface of bore hole and coat with hot bolt paste G 052 112 A3.
- Removal and installation, refer to REAR WHEEL SPEED SENSOR, FWD .
Bolt, 8 Nm
Wheel Bearing/Hub Unit
- The ABS sensor ring is installed in the wheel bearing.
