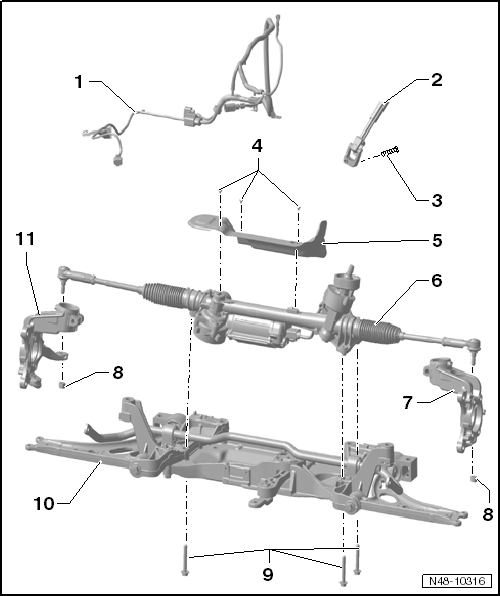

Steering System Assembly Overview
WARNING: This page is about a different variant/trim than selected.
- Electrical Wiring
- Universal Joint
- Bolt
- 30 Nm
- Always replace if removed.
- Bolt
- 6 Nm
- Self-tapping
- Shield
- Steering Gear
- With Power Steering Control Module -J500-.
- With Electromechanical Power Steering Motor -V187-.
- With Steering Angle Sensor -G85-.
- With Steering Torque Sensor -G269-.
- Can be tested in Guided Fault Finding using the Vehicle Diagnostic Tester.
- Removing and installing, refer to STEERING GEAR .NOTE:
Correct any faults stored in the DTC memory before replacing the steering gear using Vehicle Diagnostic Tester.
- Left Wheel Bearing Housing
- Nut
- 20 Nm + 90° turn
- Self-locking
- Always replace if removed.
- Bolt
- 50 Nm + 90° turn
- Always replace if removed.
- Subframe
- Right Wheel Bearing Housing
