In Glove Compartment
WARNING: This page is about a different variant/trim than selected.
Removal
CAUTION:
- Turn off the ignition and all electrical consumers.
- Remove the key.
-- Disconnect any devices connected to the multimedia system control module.
-- Remove the glove compartment. Refer to Removal and Installation .
-- Remove the screw -5- from the connector -2-.

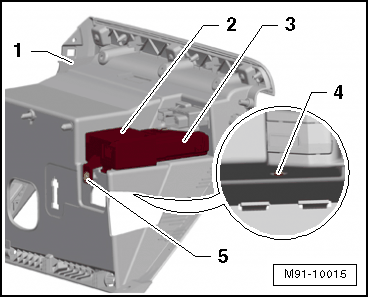

Fig 1: Identifying Connector -2- From Glove Compartment -1-, Multimedia System Control Module -3- And Screws -4-/-5-
-- Remove the screw -4- from the inside.
-- Remove the multimedia system control module -3- with the connector -2- from the glove compartment -1-.
-- Disconnect the connector -2- from the multimedia system control module -3-.
Installation
Install in reverse order of removal.
Torque specifications: 1.5 Nm
