In Center Console

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Removal

CAUTION:

-- Disconnect any devices connected to the multimedia system control module.

-- Insert the VAS 3316 into the slots on the multimedia system control module -1- until it audibly engages.

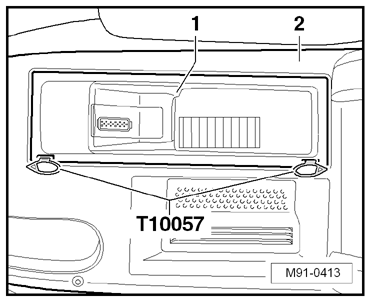

Fig 1: Identifying Multimedia System Control Module -1- Out Of Center Console -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the multimedia system control module -1- out of the center console -2- using the T10057.

-- Disconnect the connector -arrow- -A- on the multimedia system control module.

Fig 2: Identifying Multimedia System Control Module Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the clips on the multimedia system control module and remove the VAS 3316 at the same time.

Installation

Install in reverse order of removal.
