External Audio Source Connection 2 -R231- USB Port

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

CAUTION:

Removing

-- Carefully pry the selector lever boot out of the center console -arrows-.

Fig 1: Identifying Shift Boot For Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

Fig 2: Identifying Shifter Mounting Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the center console storage compartment.

-- Disconnect the connectors -arrows-.

Fig 3: Identifying ASR/ESP Button E256 Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

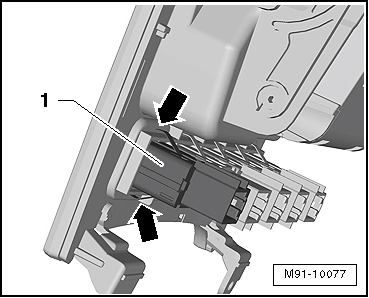

-- Squeeze the clips -arrows- on the USB port -1- using 3409 and remove the USB port -1-.

Fig 4: Identifying Clips -Arrows- On USB Port -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

Install in reverse order of removal.

Torque specifications: 1.5 Nm
