In Center Console Storage Compartment

Special tools and workshop equipment required

• Trim Removal Wedge VAS 3409

Removing

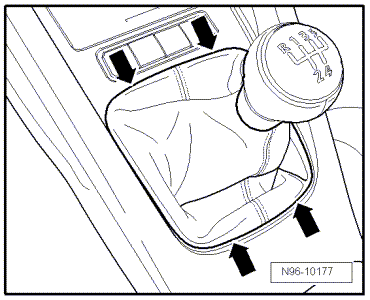

-- Carefully pry the selector lever boot out of the center console -arrows-.

Fig 1: Identifying Shift Boot For Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

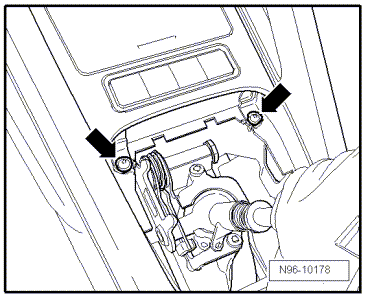

-- Remove screws -arrows-.

Fig 2: Identifying Shifter Mounting Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the center console storage compartment.

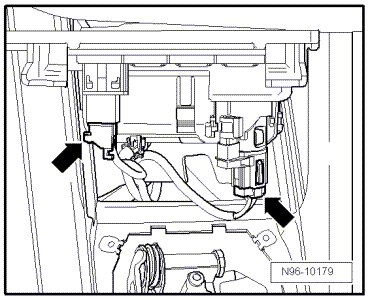

-- Disconnect the connectors -arrows-.

Fig 3: Identifying ASR/ESP Button E256 Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Squeeze the clips -arrows- on the external audio source connection using 3409 and remove the external audio source connection.

Fig 4: Identifying External Audio Source Connection Socket Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

Install in reverse order of removal.

Torque specifications: 1.5 Nm
