Cd Changer -R41-

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

The CD changer is inside the center console.

Removing

CAUTION:

-- Open the center armrest.

-- If there is a CD still in the player, remove it. Refer to the Owner's Manual.

-- Insert the VAS 3316 into the slot on both sides of the CD changer until they click into place.

-- Remove the CD changer using the VAS 3316 -arrows-.

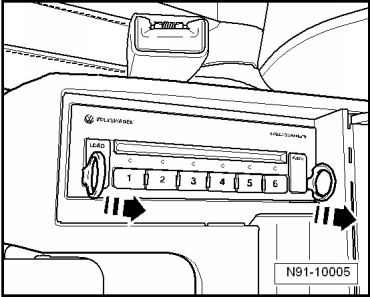

Fig 1: Identifying Removal Of CD Changer Using Radio Release Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors marked with -arrows-.

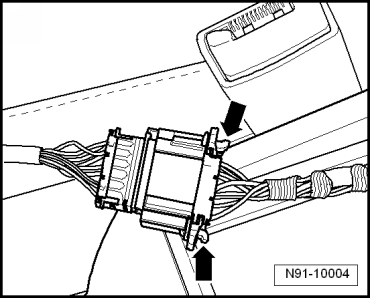

Fig 2: Identifying Electrical Connection Locks

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press on the locking clip -arrow- and pull out the VAS 3316.

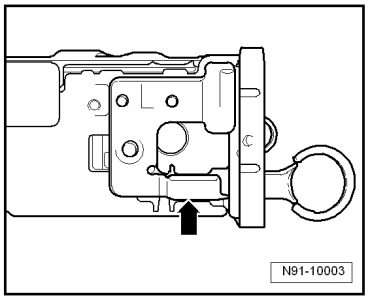

Fig 3: Identifying Retaining Clip - Arrow - To Remove Release Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.
