Telephone Transceiver -R36- Connectors, Through 06.06

WARNING: This page is about a different variant/trim than selected.

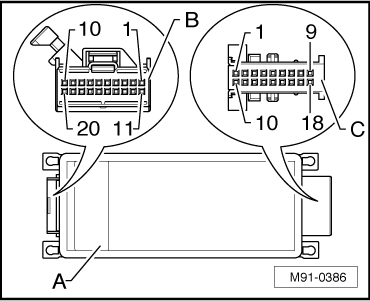

Fig 1: Identifying Telephone Transceiver R36, Multi-Pin Connector Assignments

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A - Cell phone operating electronics control module -J412-

B - 20-pin connector, red, to the Telephone baseplate -R126- (Does not apply to US vehicles)

C - Black 18-pin connector

Fig 2: Identifying 18-pin Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Terminal 31

4 - Telephone, mute to radio

7 - LF (-) to radio

8 - CAN bus, low

9 - Telephone Microphone -R38- (-):

10 - Terminal 15

11 - Terminal 30

12 - Terminal 58d

16 - LF (+) to radio

17 - CAN bus, high

18 - Telephone Microphone -R38- (+):
