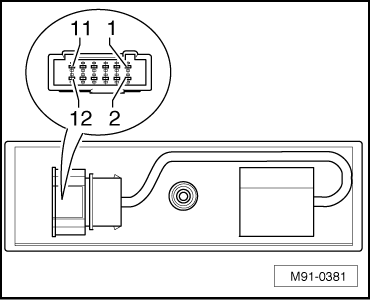

Cd Changer -R41- Connector
WARNING: This page is about a different variant/trim than selected.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- DATA IN
- CLOCK
- Terminal 31
- DATA OUT
- Not used
- Terminal 30
- Right audio output
- Control wire
- Audio ground
- Left audio output
- Not used
- Terminal 58
